| PL/SQL User's Guide and Reference Release 2 (9.2) Part Number A96624-01 |
|
Object-oriented programming is rapidly gaining acceptance because it can reduce the cost and time required to build complex applications. In PL/SQL, object-oriented programming is based on object types. They provide abstract templates for real-world objects, and so are an ideal modeling tool. To plug an object type into your programs, you need to know only what it does, not how it works.
This chapter discusses the following topics:
An abstraction is a high-level description or model of a real-world entity. Abstractions keep our daily lives manageable by suppressing irrelevant detail. For example, to drive a car, you need not know how its engine works. A simple interface consisting of a gearshift, steering wheel, accelerator, and brake, lets you use the car effectively. The details of what happens under the hood are not important for day-to-day driving.
Abstractions are central to the discipline of programming. For example, you use procedural abstraction when you hide the details of a complex algorithm by writing a procedure and passing it parameters. To try a different implementation, you simply replace the body of the procedure. Thanks to abstraction, programs that call the procedure need not be modified.
You use data abstraction when you specify the datatype of a variable. The datatype represents a set of values and a set of operations appropriate for those values. For instance, a variable of type POSITIVE can hold only positive integers, and can only be added, subtracted, multiplied, and so on. To use the variable, you do not need to know how PL/SQL stores integers or implements arithmetic operations.
Object types are a generalization of the built-in datatypes found in most programming languages. PL/SQL provides a variety of built-in scalar and composite datatypes, each of which is associated with a set of predefined operations. A scalar type (such as CHAR) has no internal components. A composite type (such as RECORD) has internal components that can be manipulated individually. Like the RECORD type, an object type is a composite type. However, its operations are user-defined, not predefined.
Currently, you cannot define object types within PL/SQL. They must be CREATEd and stored in an Oracle database, where they can be shared by many programs. A program that uses object types is called a client program. It can declare and manipulate an object without knowing how the object type represents data or implements operations. This lets you write the program and object type separately, and to change the implementation of the object type without affecting the program. Thus, object types support both procedural and data abstraction.
An object type is a user-defined composite datatype that encapsulates a data structure along with the functions and procedures needed to manipulate the data. The variables that form the data structure are called attributes. The functions and procedures that characterize the behavior of the object type are called methods.
We usually think of an object (such as a person, car, or bank account) as having attributes and behaviors. For example, a baby has the attributes gender, age, and weight, and the behaviors eat, drink, and sleep. Object types let you maintain this perspective when you sit down to write an application.
When you define an object type using the CREATE TYPE statement, you create an abstract template for some real-world object. The template specifies only those attributes and behaviors the object will need in the application environment. For example, an employee has many attributes, but usually only a few are needed to fill the requirements of an application (see Figure 10-1).

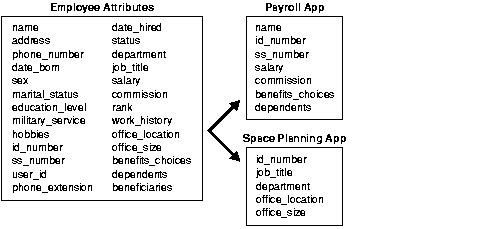

Suppose you must write a program to allocate employee bonuses. Not all employee attributes are needed to solve this problem. So, you design an abstract employee who has the following problem-specific attributes: name, ID number, department, job title, salary, and rank. Then, you identify the operations needed to handle an abstract employee. For example, you need an operation that lets Management change the rank of an employee.
Next, you define a set of variables (attributes) to represent the data, and a set of subprograms (methods) to perform the operations. Finally, you encapsulate the attributes and methods in an object type.
The data structure formed by the set of attributes is public (visible to client programs). However, well-behaved programs do not manipulate it directly. Instead, they use the set of methods provided. That way, the employee data is kept in a proper state.

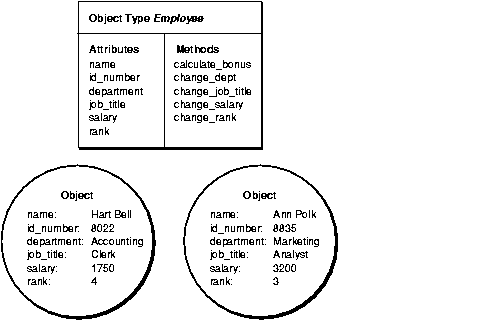

At run time, when the data structure is filled with values, you have created an instance of an abstract employee. You can create as many instances (usually called objects) as you need. Each object has the name, number, job title, and so on of an actual employee (see Figure 10-2). This data is accessed or changed only by the methods associated with it. Thus, object types let you create objects with well-defined attributes and behavior.
Object types reduce complexity by breaking down a large system into logical entities. This lets you create software components that are modular, maintainable, and reusable. It also allows different teams of programmers to develop software components concurrently.
By encapsulating operations with data, object types let you move data-maintenance code out of SQL scripts and PL/SQL blocks into methods. Object types minimize side effects by allowing access to data only through approved operations. Also, object types hide implementation details, so that you can change the details without affecting client programs.
Object types allow for realistic data modeling. Complex real-world entities and relationships map directly into object types. Moreover, object types map directly into classes defined in object-oriented languages such as Java and C++. Now your programs can better reflect the world they are trying to simulate.

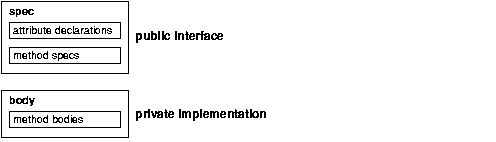

Like a package, an object type has two parts: a specification and a body (refer to Figure 10-3). The specification (or spec for short) is the interface to your applications; it declares a data structure (set of attributes) along with the operations (methods) needed to manipulate the data. The body fully defines the methods, and so implements the spec.
All the information a client program needs to use the methods is in the spec. Think of the spec as an operational interface and of the body as a black box. You can debug, enhance, or replace the body without changing the spec--and without affecting client programs.
In an object type spec, all attributes must be declared before any methods. Only subprograms have an underlying implementation. So, if an object type spec declares only attributes, the object type body is unnecessary. You cannot declare attributes in the body. All declarations in the object type spec are public (visible outside the object type).
To understand the structure better, study the example below, in which an object type for complex numbers is defined. For now, it is enough to know that a complex number has two parts, a real part and an imaginary part, and that several arithmetic operations are defined for complex numbers.
CREATE TYPE Complex AS OBJECT ( rpart REAL, -- attribute ipart REAL, MEMBER FUNCTION plus (x Complex) RETURN Complex, -- method MEMBER FUNCTION less (x Complex) RETURN Complex, MEMBER FUNCTION times (x Complex) RETURN Complex, MEMBER FUNCTION divby (x Complex) RETURN Complex ); CREATE TYPE BODY Complex AS MEMBER FUNCTION plus (x Complex) RETURN Complex IS BEGIN RETURN Complex(rpart + x.rpart, ipart + x.ipart); END plus; MEMBER FUNCTION less (x Complex) RETURN Complex IS BEGIN RETURN Complex(rpart - x.rpart, ipart - x.ipart); END less; MEMBER FUNCTION times (x Complex) RETURN Complex IS BEGIN RETURN Complex(rpart * x.rpart - ipart * x.ipart, rpart * x.ipart + ipart * x.rpart); END times; MEMBER FUNCTION divby (x Complex) RETURN Complex IS z REAL := x.rpart**2 + x.ipart**2; BEGIN RETURN Complex((rpart * x.rpart + ipart * x.ipart) / z, (ipart * x.rpart - rpart * x.ipart) / z); END divby; END;
An object type encapsulates data and operations. You can declare attributes and methods in an object type spec, but not constants, exceptions, cursors, or types. You must declare at least one attribute (the maximum is 1000). Methods are optional.
Like a variable, an attribute is declared with a name and datatype. The name must be unique within the object type (but can be reused in other object types). The datatype can be any Oracle type except:
LONG and LONG RAWROWID and UROWIDBINARY_INTEGER (and its subtypes), BOOLEAN, PLS_INTEGER, RECORD, REF CURSOR, %TYPE, and %ROWTYPEYou cannot initialize an attribute in its declaration using the assignment operator or DEFAULT clause. Also, you cannot impose the NOT NULL constraint on an attribute. However, objects can be stored in database tables on which you can impose constraints.
The kind of data structure formed by a set of attributes depends on the real-world object being modeled. For example, to represent a rational number, which has a numerator and a denominator, you need only two INTEGER variables. On the other hand, to represent a college student, you need several VARCHAR2 variables to hold a name, address, phone number, status, and so on, plus a VARRAY variable to hold courses and grades.
The data structure can be very complex. For example, the datatype of an attribute can be another object type (called a nested object type). That lets you build a complex object type from simpler object types. Some object types such as queues, lists, and trees are dynamic, meaning that they can grow as they are used. Recursive object types, which contain direct or indirect references to themselves, allow for highly sophisticated data models.
In general, a method is a subprogram declared in an object type spec using the keyword MEMBER or STATIC. The method cannot have the same name as the object type or any of its attributes. MEMBER methods are invoked on instances, as in
instance_expression.method()
However, STATIC methods are invoked on the object type, not its instances, as in
object_type_name.method()
Like packaged subprograms, methods have two parts: a specification and a body. The specification (spec for short) consists of a method name, an optional parameter list, and, for functions, a return type. The body is the code that executes to perform a specific task.
For each method spec in an object type spec, there must either be a corresponding method body in the object type body, or the method must be declared NOT INSTANTIABLE to indicate that the body is only present in subtypes of this type. To match method specs and bodies, the PL/SQL compiler does a token-by-token comparison of their headers. The headers must match exactly.
Like an attribute, a formal parameter is declared with a name and datatype. However, the datatype of a parameter cannot be size-constrained. The datatype can be any Oracle type except those disallowed for attributes. (See "Attributes".) The same restrictions apply to return types.
Oracle lets you implement object methods in PL/SQL, Java or C. You can implement type methods in Java or C by providing a call specification in your type. A call spec publishes a Java method or external C function in the Oracle data dictionary. It publishes the routine by mapping its name, parameter types, and return type to their SQL counterparts. To learn how to write Java call specs, see Oracle9i Java Stored Procedures Developer's Guide. To learn how to write C call specs, see Oracle9i Application Developer's Guide - Fundamentals.
MEMBER methods accept a built-in parameter named SELF, which is an instance of the object type. Whether declared implicitly or explicitly, it is always the first parameter passed to a MEMBER method. However, STATIC methods cannot accept or reference SELF.
In the method body, SELF denotes the object whose method was invoked. For example, method transform declares SELF as an IN OUT parameter:
CREATE TYPE Complex AS OBJECT ( MEMBER FUNCTION transform (SELF IN OUT Complex) ...
You cannot specify a different datatype for SELF. In MEMBER functions, if SELF is not declared, its parameter mode defaults to IN. However, in MEMBER procedures, if SELF is not declared, its parameter mode defaults to IN OUT. You cannot specify the OUT parameter mode for SELF.
As the following example shows, methods can reference the attributes of SELF without a qualifier:
CREATE FUNCTION gcd (x INTEGER, y INTEGER) RETURN INTEGER AS -- find greatest common divisor of x and y ans INTEGER; BEGIN IF (y <= x) AND (x MOD y = 0) THEN ans := y; ELSIF x < y THEN ans := gcd(y, x); ELSE ans := gcd(y, x MOD y); END IF; RETURN ans; END; CREATE TYPE Rational AS OBJECT ( num INTEGER, den INTEGER, MEMBER PROCEDURE normalize, ... ); CREATE TYPE BODY Rational AS MEMBER PROCEDURE normalize IS g INTEGER; BEGIN g := gcd(SELF.num, SELF.den); g := gcd(num, den); -- equivalent to previous statement num := num / g; den := den / g; END normalize; ... END;
From a SQL statement, if you call a MEMBER method on a null instance (that is, SELF is null), the method is not invoked and a null is returned. From a procedural statement, if you call a MEMBER method on a null instance, PL/SQL raises the predefined exception SELF_IS_NULL before the method is invoked.
Like packaged subprograms, methods of the same kind (functions or procedures) can be overloaded. That is, you can use the same name for different methods if their formal parameters differ in number, order, or datatype family. When you call one of the methods, PL/SQL finds it by comparing the list of actual parameters with each list of formal parameters.
A subtype can also overload methods it inherits from its supertype. In this case, the methods can have exactly the same formal parameters.
You cannot overload two methods if their formal parameters differ only in parameter mode. Also, you cannot overload two member functions that differ only in return type. For more information, see "Overloading Subprogram Names".
The values of a scalar datatype such as CHAR or REAL have a predefined order, which allows them to be compared. But instances of an object type have no predefined order. To put them in order for comparison or sorting purposes, PL/SQL calls a MAP method supplied by you. In the following example, the keyword MAP indicates that method convert() orders Rational objects by mapping them to REAL values:
CREATE TYPE Rational AS OBJECT ( num INTEGER, den INTEGER, MAP MEMBER FUNCTION convert RETURN REAL, ... ); CREATE TYPE BODY Rational AS MAP MEMBER FUNCTION convert RETURN REAL IS BEGIN RETURN num / den; END convert; ... END;
PL/SQL uses the ordering to evaluate Boolean expressions such as x > y, and to do comparisons implied by the DISTINCT, GROUP BY, and ORDER BY clauses. MAP method convert() returns the relative position of an object in the ordering of all Rational objects.
An object type can contain only one MAP method. It accepts the built-in parameter SELF and returns one of the following scalar types: DATE, NUMBER, VARCHAR2, or an ANSI SQL type such as CHARACTER or REAL.
Alternatively, you can supply PL/SQL with an ORDER method. An object type can contain only one ORDER method, which must be a function that returns a numeric result. In the following example, the keyword ORDER indicates that method match() compares two objects:
CREATE TYPE Customer AS OBJECT ( id NUMBER, name VARCHAR2(20), addr VARCHAR2(30), ORDER MEMBER FUNCTION match (c Customer) RETURN INTEGER ); CREATE TYPE BODY Customer AS ORDER MEMBER FUNCTION match (c Customer) RETURN INTEGER IS BEGIN IF id < c.id THEN RETURN -1; -- any negative number will do ELSIF id > c.id THEN RETURN 1; -- any positive number will do ELSE RETURN 0; END IF; END; END;
Every ORDER method takes just two parameters: the built-in parameter SELF and another object of the same type. If c1 and c2 are Customer objects, a comparison such as c1 > c2 calls method match automatically. The method returns a negative number, zero, or a positive number signifying that SELF is respectively less than, equal to, or greater than the other parameter. If either parameter passed to an ORDER method is null, the method returns a null.
A MAP method, acting like a hash function, maps object values into scalar values, which are then compared using operators such as <, =, and so on. An ORDER method simply compares one object value to another.
You can declare a MAP method or an ORDER method but not both. If you declare either method, you can compare objects in SQL and procedural statements. However, if you declare neither method, you can compare objects only in SQL statements and only for equality or inequality. (Two objects of the same type are equal only if the values of their corresponding attributes are equal.)
When sorting or merging a large number of objects, use a MAP method. One call maps all the objects into scalars, then sorts the scalars. An ORDER method is less efficient because it must be called repeatedly (it can compare only two objects at a time). You must use a MAP method for hash joins because PL/SQL hashes on the object value.
Every object type has a constructor method (constructor for short), which is a function with the same name as the object type that initializes and returns a new instance of that object type.
Oracle generates a default constructor for every object type, with formal parameters that match the attributes of the object type. That is, the parameters and attributes are declared in the same order and have the same names and datatypes.
You can define your own constructor methods, either overriding a system-defined constructor, or defining a new function with a different signature.
PL/SQL never calls a constructor implicitly, so you must call it explicitly.
For more information, see "Defining Constructors".
You can use the ALTER TYPE statement to add, modify, or drop attributes, and add or drop methods of an existing object type:
CREATE TYPE Person_typ AS OBJECT ( name CHAR(20), ssn CHAR(12), address VARCHAR2(100)); CREATE TYPE Person_nt IS TABLE OF Person_typ; CREATE TYPE dept_typ AS OBJECT ( mgr Person_typ, emps Person_nt); CREATE TABLE dept OF dept_typ; -- Add new attributes to Person_typ and propagate the change -- to Person_nt and dept_typ ALTER TYPE Person_typ ADD ATTRIBUTE (picture BLOB, dob DATE) CASCADE NOT INCLUDING TABLE DATA; CREATE TYPE mytype AS OBJECT (attr1 NUMBER, attr2 NUMBER); ALTER TYPE mytype ADD ATTRIBUTE (attr3 NUMBER), DROP ATTRIBUTE attr2, ADD ATTRIBUTE attr4 NUMBER CASCADE;
When a procedure is compiled, it always uses the current version of any object types it references. Existing procedures on the server that reference an object type are invalidated when the type is altered, and are automatically recompiled the next time the procedure is called. You must manually recompile any procedures on the client side that reference types that are altered.
If you drop a method from a supertype, you might have to make changes to subtypes that override that method. You can find if any subtypes are affected by using the CASCADE option of ALTER TYPE; the statement is rolled back if any subtypes override the method. To successfully drop the method from the supertype, you can:
ALTER TYPE without the OVERRIDING keyword.For more information about the ALTER TYPE statement, see Oracle9i SQL Reference. For guidelines about using type evolution in your applications, and options for changing other types and data that rely on see Oracle9i Application Developer's Guide - Object-Relational Features.
An object type can represent any real-world entity. For example, an object type can represent a student, bank account, computer screen, rational number, or data structure such as a queue, stack, or list. This section gives several complete examples, which teach you a lot about the design of object types and prepare you to start writing your own.
Currently, you cannot define object types in a PL/SQL block, subprogram, or package. However, you can define them interactively in SQL*Plus using the following syntax:
CREATE [OR REPLACE] TYPE type_name [AUTHID {CURRENT_USER | DEFINER}] { {IS | AS} OBJECT | UNDER supertype_name } ( attribute_name datatype[, attribute_name datatype]... [{MAP | ORDER} MEMBER function_spec,] [{FINAL| NOT FINAL} MEMBER function_spec,] [{INSTANTIABLE| NOT INSTANTIABLE} MEMBER function_spec,] [{MEMBER | STATIC} {subprogram_spec | call_spec} [, {MEMBER | STATIC} {subprogram_spec | call_spec}]...] ) [{FINAL| NOT FINAL}] [ {INSTANTIABLE| NOT INSTANTIABLE}]; [CREATE [OR REPLACE] TYPE BODY type_name {IS | AS} { {MAP | ORDER} MEMBER function_body; | {MEMBER | STATIC} {subprogram_body | call_spec};} [{MEMBER | STATIC} {subprogram_body | call_spec};]... END;]
The AUTHID clause determines whether all member methods execute with the privileges of their definer (the default) or invoker, and whether their unqualified references to schema objects are resolved in the schema of the definer or invoker. For more information, see "Invoker Rights Versus Definer Rights".
PL/SQL supports a single-inheritance model. You can define subtypes of object types. These subtypes contain all the attributes and methods of the parent type (or supertype). The subtypes can also contain additional attributes and additional methods, and can override methods from the supertype.
You can define whether or not subtypes can be derived from a particular type. You can also define types and methods that cannot be instantiated directly, only by declaring subtypes that instantiate them.
Some of the type properties can be changed dynamically with the ALTER TYPE statement. When changes are made to the supertype, either through ALTER TYPE or by redefining the supertype, the subtypes automatically reflect those changes.
You can use the TREAT operator to return only those objects that are of a specified subtype.
The values from the REF and DEREF functions can represent either the declared type of the table or view, or one or more of its subtypes.
-- Create a supertype from which several subtypes will be derived. CREATE TYPE Person_typ AS OBJECT ( ssn NUMBER, name VARCHAR2(30), address VARCHAR2(100)) NOT FINAL; -- Derive a subtype that has all the attributes of the supertype, -- plus some additional attributes. CREATE TYPE Student_typ UNDER Person_typ ( deptid NUMBER, major VARCHAR2(30)) NOT FINAL; -- Because Student_typ is declared NOT FINAL, you can derive -- further subtypes from it. CREATE TYPE PartTimeStudent_typ UNDER Student_typ( numhours NUMBER); -- Derive another subtype. Because it has the default attribute -- FINAL, you cannot use Employee_typ as a supertype and derive -- subtypes from it. CREATE TYPE Employee_typ UNDER Person_typ( empid NUMBER, mgr VARCHAR2(30)); -- Define an object type that can be a supertype. Because the -- member function is FINAL, it cannot be overridden in any -- subtypes. CREATE TYPE T AS OBJECT (..., MEMBER PROCEDURE Print(), FINAL MEMBER FUNCTION foo(x NUMBER)...) NOT FINAL; -- We never want to create an object of this supertype. By using -- NOT INSTANTIABLE, we force all objects to use one of the subtypes -- instead, with specific implementations for the member functions. CREATE TYPE Address_typ AS OBJECT(...) NOT INSTANTIABLE NOT FINAL; -- These subtypes can provide their own implementations of -- member functions, such as for validating phone numbers and -- postal codes. Because there is no "generic" way of doing these -- things, only objects of these subtypes can be instantiated. CREATE TYPE USAddress_typ UNDER Address_typ(...); CREATE TYPE IntlAddress_typ UNDER Address_typ(...); -- Return REFs for those Person_typ objects that are instances of -- the Student_typ subtype, and NULL REFs otherwise. SELECT TREAT(REF(p) AS REF Student_typ) FROM Person_v p; -- Example of using TREAT for assignment... -- Return REFs for those Person_type objects that are instances of -- Employee_type or Student_typ, or any of their subtypes. SELECT REF(p) FROM Person_v P WHERE VALUE(p) IS OF (Employee_typ, Student_typ); -- Similar to above, but do not allow any subtypes of Student_typ. SELECT REF(p) FROM Person_v p WHERE VALUE(p) IS OF(ONLY Student_typ); -- The results of REF and DEREF can include objects of Person_typ -- and its subtypes such as Employee_typ and Student_typ. SELECT REF(p) FROM Person_v p; SELECT DEREF(REF(p)) FROM Person_v p;
A stack holds an ordered collection of data items. Stacks have a top and a bottom. Items can be added or removed only at the top. So, the last item added to a stack is the first item removed. (Think of the stack of clean serving trays in a cafeteria.) The operations push and pop update the stack while preserving last in, first out (LIFO) behavior.
Stacks have many applications. For example, they are used in systems programming to prioritize interrupts and to manage recursion. The simplest implementation of a stack uses an integer array, with one end of the array representing the top of the stack.
PL/SQL provides the datatype VARRAY, which lets you declare variable-size arrays (varrays for short). To declare a varray attribute, you must first define its type. However, you cannot define types in an object type spec. So, you define a standalone varray type, specifying its maximum size, as follows:
CREATE TYPE IntArray AS VARRAY(25) OF INTEGER;
Now, you can write the object type spec:
CREATE TYPE Stack AS OBJECT ( max_size INTEGER, top INTEGER, position IntArray, MEMBER PROCEDURE initialize, MEMBER FUNCTION full RETURN BOOLEAN, MEMBER FUNCTION empty RETURN BOOLEAN, MEMBER PROCEDURE push (n IN INTEGER), MEMBER PROCEDURE pop (n OUT INTEGER) );
Finally, you write the object type body:
CREATE TYPE BODY Stack AS MEMBER PROCEDURE initialize IS BEGIN top := 0; /* Call constructor for varray and set element 1 to NULL. */ position := IntArray(NULL); max_size := position.LIMIT; -- get varray size constraint position.EXTEND(max_size - 1, 1); -- copy element 1 into 2..25 END initialize; MEMBER FUNCTION full RETURN BOOLEAN IS BEGIN RETURN (top = max_size); -- return TRUE if stack is full END full; MEMBER FUNCTION empty RETURN BOOLEAN IS BEGIN RETURN (top = 0); -- return TRUE if stack is empty END empty; MEMBER PROCEDURE push (n IN INTEGER) IS BEGIN IF NOT full THEN top := top + 1; -- push integer onto stack position(top) := n; ELSE -- stack is full RAISE_APPLICATION_ERROR(-20101, 'stack overflow'); END IF; END push; MEMBER PROCEDURE pop (n OUT INTEGER) IS BEGIN IF NOT empty THEN n := position(top); top := top - 1; -- pop integer off stack ELSE -- stack is empty RAISE_APPLICATION_ERROR(-20102, 'stack underflow'); END IF; END pop; END;
In member procedures push and pop, you use the built-in procedure raise_application_error to issue user-defined error messages. That way, you report errors to the client program and avoid returning unhandled exceptions to the host environment. The client program gets a PL/SQL exception, which it can process using the error-reporting functions SQLCODE and SQLERRM in an OTHERS exception handler. In the following example, when an exception is raised, you print the corresponding Oracle error message:
DECLARE ... BEGIN ... EXCEPTION WHEN OTHERS THEN dbms_output.put_line(SQLERRM); END;
Alternatively, the program can use pragma EXCEPTION_INIT to map the error numbers returned by raise_application_error to named exceptions, as the following example shows:
DECLARE stack_overflow EXCEPTION; stack_underflow EXCEPTION; PRAGMA EXCEPTION_INIT(stack_overflow, -20101); PRAGMA EXCEPTION_INIT(stack_underflow, -20102); BEGIN ... EXCEPTION WHEN stack_overflow THEN ... END;
Consider a chain of movie theaters, each theater with three screens. Each theater has a ticket booth where tickets for three different movies are sold. All tickets are priced at $3.00. Periodically, ticket receipts are collected and the stock of tickets is replenished.
Before defining an object type that represents a ticket booth, you must consider the data and operations needed. For a simple ticket booth, the object type needs attributes for the ticket price, quantity of tickets on hand, and receipts. It also needs methods for the following operations: purchase ticket, take inventory, replenish stock, and collect receipts.
For receipts, you use a three-element varray. Elements 1, 2, and 3 record the ticket receipts for movies 1, 2, and 3, respectively. To declare a varray attribute, you must first define its type, as follows:
CREATE TYPE RealArray AS VARRAY(3) OF REAL;
Now, you can write the object type spec:
CREATE TYPE Ticket_Booth AS OBJECT ( price REAL, qty_on_hand INTEGER, receipts RealArray, MEMBER PROCEDURE initialize, MEMBER PROCEDURE purchase ( movie INTEGER, amount REAL, change OUT REAL), MEMBER FUNCTION inventory RETURN INTEGER, MEMBER PROCEDURE replenish (quantity INTEGER), MEMBER PROCEDURE collect (movie INTEGER, amount OUT REAL) );
Finally, you write the object type body:
CREATE TYPE BODY Ticket_Booth AS MEMBER PROCEDURE initialize IS BEGIN price := 3.00; qty_on_hand := 5000; -- provide initial stock of tickets -- call constructor for varray and set elements 1..3 to zero receipts := RealArray(0,0,0); END initialize; MEMBER PROCEDURE purchase ( movie INTEGER, amount REAL, change OUT REAL) IS BEGIN IF qty_on_hand = 0 THEN RAISE_APPLICATION_ERROR(-20103, 'out of stock'); END IF; IF amount >= price THEN qty_on_hand := qty_on_hand - 1; receipts(movie) := receipts(movie) + price; change := amount - price; ELSE -- amount is not enough change := amount; -- so return full amount END IF; END purchase; MEMBER FUNCTION inventory RETURN INTEGER IS BEGIN RETURN qty_on_hand; END inventory; MEMBER PROCEDURE replenish (quantity INTEGER) IS BEGIN qty_on_hand := qty_on_hand + quantity; END replenish; MEMBER PROCEDURE collect (movie INTEGER, amount OUT REAL) IS BEGIN amount := receipts(movie); -- get receipts for a given movie receipts(movie) := 0; -- reset receipts to zero END collect; END;
Before defining an object type that represents a bank account, you must consider the data and operations needed. For a simple bank account, the object type needs attributes for an account number, balance, and status. It also needs methods for the following operations: open account, verify account number, close account, deposit money, withdraw money, and return balance.
First, you write the object type spec, as follows:
CREATE TYPE Bank_Account AS OBJECT ( acct_number INTEGER(5), balance REAL, status VARCHAR2(10), MEMBER PROCEDURE open (amount IN REAL), MEMBER PROCEDURE verify_acct (num IN INTEGER), MEMBER PROCEDURE close (num IN INTEGER, amount OUT REAL), MEMBER PROCEDURE deposit (num IN INTEGER, amount IN REAL), MEMBER PROCEDURE withdraw (num IN INTEGER, amount IN REAL), MEMBER FUNCTION curr_bal (num IN INTEGER) RETURN REAL );
Then, you write the object type body:
CREATE TYPE BODY Bank_Account AS MEMBER PROCEDURE open (amount IN REAL) IS -- open account with initial deposit BEGIN IF NOT amount > 0 THEN RAISE_APPLICATION_ERROR(-20104, 'bad amount'); END IF; SELECT acct_sequence.NEXTVAL INTO acct_number FROM dual; status := 'open'; balance := amount; END open; MEMBER PROCEDURE verify_acct (num IN INTEGER) IS -- check for wrong account number or closed account BEGIN IF (num <> acct_number) THEN RAISE_APPLICATION_ERROR(-20105, 'wrong number'); ELSIF (status = 'closed') THEN RAISE_APPLICATION_ERROR(-20106, 'account closed'); END IF; END verify_acct; MEMBER PROCEDURE close (num IN INTEGER, amount OUT REAL) IS -- close account and return balance BEGIN verify_acct(num); status := 'closed'; amount := balance; END close; MEMBER PROCEDURE deposit (num IN INTEGER, amount IN REAL) IS BEGIN verify_acct(num); IF NOT amount > 0 THEN RAISE_APPLICATION_ERROR(-20104, 'bad amount'); END IF; balance := balance + amount; END deposit; MEMBER PROCEDURE withdraw (num IN INTEGER, amount IN REAL) IS -- if account has enough funds, withdraw -- given amount; else, raise an exception BEGIN verify_acct(num); IF amount <= balance THEN balance := balance - amount; ELSE RAISE_APPLICATION_ERROR(-20107, 'insufficient funds'); END IF; END withdraw; MEMBER FUNCTION curr_bal (num IN INTEGER) RETURN REAL IS BEGIN verify_acct(num); RETURN balance; END curr_bal; END;
A rational number is a number expressible as the quotient of two integers, a numerator and a denominator. Like most languages, PL/SQL does not have a rational number type or predefined operations on rational numbers. Let us remedy that omission by defining object type Rational. First, you write the object type spec, as follows:
CREATE TYPE Rational AS OBJECT ( num INTEGER, den INTEGER, MAP MEMBER FUNCTION convert RETURN REAL, MEMBER PROCEDURE normalize, MEMBER FUNCTION reciprocal RETURN Rational, MEMBER FUNCTION plus (x Rational) RETURN Rational, MEMBER FUNCTION less (x Rational) RETURN Rational, MEMBER FUNCTION times (x Rational) RETURN Rational, MEMBER FUNCTION divby (x Rational) RETURN Rational, PRAGMA RESTRICT_REFERENCES (DEFAULT, RNDS,WNDS,RNPS,WNPS) );
PL/SQL does not allow the overloading of operators. So, you must define methods named plus(), less() (the word minus is reserved), times(), and divby() instead of overloading the infix operators +, -, *, and /.
Next, you create the following standalone stored function, which will be called by method normalize():
CREATE FUNCTION gcd (x INTEGER, y INTEGER) RETURN INTEGER AS -- find greatest common divisor of x and y ans INTEGER; BEGIN IF (y <= x) AND (x MOD y = 0) THEN ans := y; ELSIF x < y THEN ans := gcd(y, x); -- recursive call ELSE ans := gcd(y, x MOD y); -- recursive call END IF; RETURN ans; END;
Then, you write the object type body, as follows:
CREATE TYPE BODY Rational AS MAP MEMBER FUNCTION convert RETURN REAL IS -- convert rational number to real number BEGIN RETURN num / den; END convert; MEMBER PROCEDURE normalize IS -- reduce fraction num / den to lowest terms g INTEGER; BEGIN g := gcd(num, den); num := num / g; den := den / g; END normalize; MEMBER FUNCTION reciprocal RETURN Rational IS -- return reciprocal of num / den BEGIN RETURN Rational(den, num); -- call constructor END reciprocal; MEMBER FUNCTION plus (x Rational) RETURN Rational IS -- return sum of SELF + x r Rational; BEGIN r := Rational(num * x.den + x.num * den, den * x.den); r.normalize; RETURN r; END plus; MEMBER FUNCTION less (x Rational) RETURN Rational IS -- return difference of SELF - x r Rational; BEGIN r := Rational(num * x.den - x.num * den, den * x.den); r.normalize; RETURN r; END less; MEMBER FUNCTION times (x Rational) RETURN Rational IS -- return product of SELF * x r Rational; BEGIN r := Rational(num * x.num, den * x.den); r.normalize; RETURN r; END times; MEMBER FUNCTION divby (x Rational) RETURN Rational IS -- return quotient of SELF / x r Rational; BEGIN r := Rational(num * x.den, den * x.num); r.normalize; RETURN r; END divby; END;
Once an object type is defined and installed in the schema, you can use it to declare objects in any PL/SQL block, subprogram, or package. For example, you can use the object type to specify the datatype of an attribute, column, variable, bind variable, record field, table element, formal parameter, or function result. At run time, instances of the object type are created; that is, objects of that type are instantiated. Each object can hold different values.
Such objects follow the usual scope and instantiation rules. In a block or subprogram, local objects are instantiated when you enter the block or subprogram and cease to exist when you exit. In a package, objects are instantiated when you first reference the package and cease to exist when you end the database session.
You can use object types wherever built-in types such as CHAR or NUMBER can be used. In the block below, you declare object r of type Rational. Then, you call the constructor for object type Rational to initialize the object. The call assigns the values 6 and 8 to attributes num and den, respectively.
DECLARE r Rational; BEGIN r := Rational(6, 8); dbms_output.put_line(r.num); -- prints 6
You can declare objects as the formal parameters of functions and procedures. That way, you can pass objects to stored subprograms and from one subprogram to another. In the next example, you use object type Account to specify the datatype of a formal parameter:
DECLARE ... PROCEDURE open_acct (new_acct IN OUT Account) IS ...
In the following example, you use object type Account to specify the return type of a function:
DECLARE ... FUNCTION get_acct (acct_id IN INTEGER) RETURN Account IS ...
Until you initialize an object by calling the constructor for its object type, the object is atomically null. That is, the object itself is null, not just its attributes. Consider the following example:
DECLARE r Rational; -- r becomes atomically null BEGIN r := Rational(2,3); -- r becomes 2/3
A null object is never equal to another object. In fact, comparing a null object with any other object always yields NULL. Also, if you assign an atomically null object to another object, the other object becomes atomically null (and must be reinitialized). Likewise, if you assign the non-value NULL to an object, the object becomes atomically null, as the following example shows:
DECLARE r Rational; BEGIN r Rational := Rational(1,2); -- r becomes 1/2 r := NULL; -- r becomes atomically null IF r IS NULL THEN ... -- condition yields TRUE
A good programming practice is to initialize an object in its declaration, as shown in the following example:
DECLARE r Rational := Rational(2,3); -- r becomes 2/3
In an expression, attributes of an uninitialized object evaluate to NULL. Trying to assign values to attributes of an uninitialized object raises the predefined exception ACCESS_INTO_NULL. When applied to an uninitialized object or its attributes, the IS NULL comparison operator yields TRUE.
The following example illustrates the difference between null objects and objects with null attributes:
DECLARE r Rational; -- r is atomically null BEGIN IF r IS NULL THEN ... -- yields TRUE IF r.num IS NULL THEN ... -- yields TRUE r := Rational(NULL, NULL); -- initializes r r.num := 4; -- succeeds because r is no longer atomically null -- even though all its attributes are null r := NULL; -- r becomes atomically null again r.num := 4; -- raises ACCESS_INTO_NULL EXCEPTION WHEN ACCESS_INTO_NULL THEN ... END;
Calls to methods of an uninitialized object raise the predefined exception NULL_SELF_DISPATCH. When passed as arguments to IN parameters, attributes of an uninitialized object evaluate to NULL. When passed as arguments to OUT or IN OUT parameters, they raise an exception if you try to write to them.
You can refer to an attribute only by name (not by its position in the object type). To access or change the value of an attribute, you use dot notation. In the example below, you assign the value of attribute den to variable denominator. Then, you assign the value stored in variable numerator to attribute num.
DECLARE r Rational := Rational(NULL, NULL); numerator INTEGER; denominator INTEGER; BEGIN ... denominator := r.den; r.num := numerator;
Attribute names can be chained, which lets you access the attributes of a nested object type. For example, suppose you define object types Address and Student, as follows:
CREATE TYPE Address AS OBJECT ( street VARCHAR2(30), city VARCHAR2(20), state CHAR(2), zip_code VARCHAR2(5) ); CREATE TYPE Student AS OBJECT ( name VARCHAR2(20), home_address Address, phone_number VARCHAR2(10), status VARCAHR2(10), advisor_name VARCHAR2(20), ... );
Notice that zip_code is an attribute of object type Address and that Address is the datatype of attribute home_address in object type Student. If s is a Student object, you access the value of its zip_code attribute as follows:
s.home_address.zip_code
By default, you do not need to define a constructor for an object type. The system supplies a default constructor that accepts a parameter corresponding to each attribute.
You might also want to define your own constructor:
For example:
CREATE OR REPLACE TYPE rectangle AS OBJECT ( -- The type has 3 attributes. length NUMBER, width NUMBER, area NUMBER, -- Define a constructor that has only 2 parameters. CONSTRUCTOR FUNCTION rectangle(length NUMBER, width NUMBER) RETURN SELF AS RESULT ); / CREATE OR REPLACE TYPE BODY rectangle AS CONSTRUCTOR FUNCTION rectangle(length NUMBER, width NUMBER) RETURN SELF AS RESULT AS BEGIN SELF.length := length; SELF.width := width; -- We compute the area rather than accepting it as a parameter. SELF.area := length * width; RETURN; END; END; / DECLARE r1 rectangle; r2 rectangle; BEGIN -- We can still call the default constructor, with all 3 parameters. r1 := NEW rectangle(10,20,200); -- But it is more robust to call our constructor, which computes -- the AREA attribute. This guarantees that the initial value is OK. r2 := NEW rectangle(10,20); END; /
Calls to a constructor are allowed wherever function calls are allowed. Like all functions, a constructor is called as part of an expression, as the following example shows:
DECLARE r1 Rational := Rational(2, 3); FUNCTION average (x Rational, y Rational) RETURN Rational IS BEGIN ... END; BEGIN r1 := average(Rational(3, 4), Rational(7, 11)); IF (Rational(5, 8) > r1) THEN ... END IF; END;
When you pass parameters to a constructor, the call assigns initial values to the attributes of the object being instantiated. When you call the default constructor to fill in all attribute values, you must supply a parameter for every attribute; unlike constants and variables, attributes cannot have default values. As the following example shows, the nth parameter assigns a value to the nth attribute:
DECLARE r Rational; BEGIN r := Rational(5, 6); -- assign 5 to num, 6 to den -- now r is 5/6
The next example shows that you can call a constructor using named notation instead of positional notation:
BEGIN r := Rational(den => 6, num => 5); -- assign 5 to num, 6 to den
Like packaged subprograms, methods are called using dot notation. In the following example, you call method normalize(), which divides attributes num and den (for "numerator" and "denominator") by their greatest common divisor:
DECLARE r Rational; BEGIN r := Rational(6, 8); r.normalize; dbms_output.put_line(r.num); -- prints 3 END;
As the example below shows, you can chain method calls. Execution proceeds from left to right. First, member function reciprocal() is called, then member procedure normalize() is called.
DECLARE r Rational := Rational(6, 8); BEGIN r.reciprocal().normalize; dbms_output.put_line(r.num); -- prints 4 END;
In SQL statements, calls to a parameterless method require an empty parameter list. In procedural statements, an empty parameter list is optional unless you chain calls, in which case it is required for all but the last call.
You cannot chain additional method calls to the right of a procedure call because a procedure is called as a statement, not as part of an expression. For example, the following statement is not allowed:
r.normalize().reciprocal; -- not allowed
Also, if you chain two function calls, the first function must return an object that can be passed to the second function.
For static methods, calls use the notation type_name.method_name rather than specifying an instance of the type.
When you call a method using an instance of a subtype, the actual method that is executed depends on the exact declarations in the type hierarchy. If the subtype overrides the method that it inherits from its supertype, the call uses the subtype's implementation. Or, if the subtype does not override the method, the call uses the supertype's implementation. This capability is known as dynamic method dispatch.
Most real-world objects are considerably larger and more complex than objects of type Rational. When an object is large, it is inefficient to pass copies of it from subprogram to subprogram. It makes more sense to share the object. You can do that if the object has an object identifier. To share the object, you use references (refs for short). A ref is a pointer to an object.
Sharing has two important advantages. First, data is not replicated unnecessarily. Second, when a shared object is updated, the change occurs in only one place, and any ref can retrieve the updated values instantly.
In the following example, you gain the advantages of sharing by defining object type Home and then creating a table that stores instances of that object type:
CREATE TYPE Home AS OBJECT ( address VARCHAR2(35), owner VARCHAR2(25), age INTEGER, style VARCHAR(15), floor plan BLOB, price REAL(9,2), ... ); / CREATE TABLE homes OF Home;
By revising object type Person, you can model families, where several people share the same home. You use the type modifier REF to declare refs, which hold pointers to objects.
CREATE TYPE Person AS OBJECT ( first_name VARCHAR2(10), last_name VARCHAR2(15), birthday DATE, home_address REF Home, -- can be shared by family phone_number VARCHAR2(15), ss_number INTEGER, mother REF Person, -- family members refer to each other father REF Person, ... );
Notice how references from persons to homes and between persons model real-world relationships.
You can declare refs as variables, parameters, fields, or attributes. And, you can use refs as input or output variables in SQL data manipulation statements. However, you cannot navigate through refs. Given an expression such as x.attribute, where x is a ref, PL/SQL cannot navigate to the table in which the referenced object is stored. For example, the following assignment is not allowed:
DECLARE p_ref REF Person; phone_no VARCHAR2(15); BEGIN phone_no := p_ref.phone_number; -- not allowed
Instead, you must use the function DEREF or make calls to the package UTL_REF to access the object. For some examples, see "Using Function DEREF".
You can refer only to schema objects that already exist. In the following example, the first CREATE TYPE statement is not allowed because it refers to object type Department, which does not yet exist:
CREATE TYPE Employee AS OBJECT ( name VARCHAR2(20), dept REF Department, -- not allowed ... ); CREATE TYPE Department AS OBJECT ( number INTEGER, manager Employee, ... );
Switching the CREATE TYPE statements does not help because the object types are mutually dependent. Object type Employee has an attribute that refers to object type Department, and object type Department has an attribute of type Employee. To solve this problem, you use a special CREATE TYPE statement called a forward type definition, which lets you define mutually dependent object types.
To debug the last example, simply precede it with the following statement:
CREATE TYPE Department; -- forward type definition -- at this point, Department is an incomplete object type
The object type created by a forward type definition is called an incomplete object type because (until it is defined fully) it has no attributes or methods.
An impure incomplete object type has attributes but causes compilation errors because it refers to an undefined type. For example, the following CREATE TYPE statement causes an error because object type Address is undefined:
CREATE TYPE Customer AS OBJECT ( id NUMBER, name VARCHAR2(20), addr Address, -- not yet defined phone VARCHAR2(15) );
This lets you defer the definition of object type Address. Moreover, the incomplete type Customer can be made available to other application developers for use in refs.
You can use an object type in the CREATE TABLE statement to specify the datatype of a column. Once the table is created, you can use SQL statements to insert an object, select its attributes, call its methods, and update its state.
Note: Access to remote or distributed objects is not allowed.
In the SQL*Plus script below, the INSERT statement calls the constructor for object type Rational, then inserts the resulting object. The SELECT statement retrieves the value of attribute num. The UPDATE statement calls member method reciprocal(), which returns a Rational value after swapping attributes num and den. Notice that a table alias is required when you reference an attribute or method. (For an explanation, see Appendix D.)
CREATE TABLE numbers (rn Rational, ...) / INSERT INTO numbers (rn) VALUES (Rational(3, 62)) -- inserts 3/62 / SELECT n.rn.num INTO my_num FROM numbers n ... -- returns 3 / UPDATE numbers n SET n.rn = n.rn.reciprocal() ... -- yields 62/3
When you instantiate an object this way, it has no identity outside the database table. However, the object type exists independently of any table, and can be used to create objects in other ways.
In the next example, you create a table that stores objects of type Rational in its rows. Such tables, having rows of objects, are called object tables. Each column in a row corresponds to an attribute of the object type. Rows can have different column values.
CREATE TABLE rational_nums OF Rational;
Each row in an object table has an object identifier, which uniquely identifies the object stored in that row and serves as a reference to the object.
Assume that you have run the following SQL*Plus script, which creates object type Person and object table persons, and that you have populated the table:
CREATE TYPE Person AS OBJECT ( first_name VARCHAR2(15), last_name VARCHAR2(15), birthday DATE, home_address Address, phone_number VARCHAR2(15)) / CREATE TABLE persons OF Person /
The following subquery produces a result set of rows containing only the attributes of Person objects:
BEGIN INSERT INTO employees -- another object table of type Person SELECT * FROM persons p WHERE p.last_name LIKE '%Smith';
To return a result set of objects, you must use the function VALUE, which is discussed in the next section.
As you might expect, the function VALUE returns the value of an object. VALUE takes as its argument a correlation variable. (In this context, a correlation variable is a row variable or table alias associated with a row in an object table.) For example, to return a result set of Person objects, use VALUE as follows:
BEGIN INSERT INTO employees SELECT VALUE(p) FROM persons p WHERE p.last_name LIKE '%Smith';
In the next example, you use VALUE to return a specific Person object:
DECLARE p1 Person; p2 Person; ... BEGIN SELECT VALUE(p) INTO p1 FROM persons p WHERE p.last_name = 'Kroll'; p2 := p1; ... END;
At this point, p1 holds a local Person object, which is a copy of the stored object whose last name is 'Kroll', and p2 holds another local Person object, which is a copy of p1. As the following example shows, you can use these variables to access and update the objects they hold:
BEGIN p1.last_name := p1.last_name || ' Jr';
Now, the local Person object held by p1 has the last name 'Kroll Jr'.
You can retrieve refs using the function REF, which, like VALUE, takes as its argument a correlation variable. In the following example, you retrieve one or more refs to Person objects, then insert the refs into table person_refs:
BEGIN INSERT INTO person_refs SELECT REF(p) FROM persons p WHERE p.last_name LIKE '%Smith';
In the next example, you retrieve a ref and attribute at the same time:
DECLARE p_ref REF Person; taxpayer_id VARCHAR2(9); BEGIN SELECT REF(p), p.ss_number INTO p_ref, taxpayer_id FROM persons p WHERE p.last_name = 'Parker'; -- must return one row ... END;
In the final example, you update the attributes of a Person object:
DECLARE p_ref REF Person; my_last_name VARCHAR2(15); BEGIN SELECT REF(p) INTO p_ref FROM persons p WHERE p.last_name = my_last_name; UPDATE persons p SET p = Person('Jill', 'Anders', '11-NOV-67', ...) WHERE REF(p) = p_ref; END;
If the object to which a ref points is deleted, the ref is left dangling (pointing to a nonexistent object). To test for this condition, you can use the SQL predicate IS DANGLING. For example, suppose column manager in relational table department holds refs to Employee objects stored in an object table. You can use the following UPDATE statement to convert any dangling refs into nulls:
UPDATE department SET manager = NULL WHERE manager IS DANGLING;
You cannot navigate through refs within PL/SQL procedural statements. Instead, you must use the function DEREF in a SQL statement. (DEREF is short for dereference. When you dereference a pointer, you get the value to which it points.) DEREF takes as its argument a reference to an object, then returns the value of that object. If the ref is dangling, DEREF returns a null object.
In the example below, you dereference a ref to a Person object. Notice that you select the ref from dummy table dual. You need not specify an object table and search criteria because each object stored in an object table has a unique, immutable object identifier, which is part of every ref to that object.
DECLARE p1 Person; p_ref REF Person; name VARCHAR2(15); BEGIN ... /* Assume that p_ref holds a valid reference to an object stored in an object table. */ SELECT DEREF(p_ref) INTO p1 FROM dual; name := p1.last_name;
You can use DEREF in successive SQL statements to dereference refs, as the following example shows:
CREATE TYPE PersonRef AS OBJECT (p_ref REF Person) / DECLARE name VARCHAR2(15); pr_ref REF PersonRef; pr PersonRef; p Person; BEGIN ... /* Assume pr_ref holds a valid reference. */ SELECT DEREF(pr_ref) INTO pr FROM dual; SELECT DEREF(pr.p_ref) INTO p FROM dual; name := p.last_name; ... END /
The next example shows that you cannot use function DEREF within procedural statements:
BEGIN ... p1 := DEREF(p_ref); -- not allowed
Within SQL statements, you can use dot notation to navigate through object columns to ref attributes and through one ref attribute to another. You can also navigate through ref columns to attributes if you use a table alias. For example, the following syntax is valid:
table_alias.object_column.ref_attribute table_alias.object_column.ref_attribute.attribute table_alias.ref_column.attribute
Assume that you have run the following SQL*Plus script, which creates object types Address and Person and object table persons:
CREATE TYPE Address AS OBJECT ( street VARCHAR2(35), city VARCHAR2(15), state CHAR(2), zip_code INTEGER) / CREATE TYPE Person AS OBJECT ( first_name VARCHAR2(15), last_name VARCHAR2(15), birthday DATE, home_address REF Address, -- shared with other Person objects phone_number VARCHAR2(15)) / CREATE TABLE persons OF Person /
Ref attribute home_address corresponds to a column in object table persons that holds refs to Address objects stored in some other table. After populating the tables, you can select a particular address by dereferencing its ref, as follows:
DECLARE addr1 Address, addr2 Address, ... BEGIN SELECT DEREF(home_address) INTO addr1 FROM persons p WHERE p.last_name = 'Derringer';
In the example below, you navigate through ref column home_address to attribute street. In this case, a table alias is required.
DECLARE my_street VARCHAR2(25), ... BEGIN SELECT p.home_address.street INTO my_street FROM persons p WHERE p.last_name = 'Lucas';
You use the INSERT statement to add objects to an object table. In the following example, you insert a Person object into object table persons:
BEGIN INSERT INTO persons VALUES ('Jenifer', 'Lapidus', ...);
Alternatively, you can use the constructor for object type Person to insert an object into object table persons:
BEGIN INSERT INTO persons VALUES (Person('Albert', 'Brooker', ...));
In the next example, you use the RETURNING clause to store Person refs in local variables. Notice how the clause mimics a SELECT statement.You can also use the RETURNING clause in UPDATE and DELETE statements.
DECLARE p1_ref REF Person; p2_ref REF Person; BEGIN INSERT INTO persons p VALUES (Person('Paul', 'Chang', ...)) RETURNING REF(p) INTO p1_ref; INSERT INTO persons p VALUES (Person('Ana', 'Thorne', ...)) RETURNING REF(p) INTO p2_ref;
To insert objects into an object table, you can use a subquery that returns objects of the same type. An example follows:
BEGIN INSERT INTO persons2 SELECT VALUE(p) FROM persons p WHERE p.last_name LIKE '%Jones';
The rows copied to object table persons2 are given new object identifiers. No object identifiers are copied from object table persons.
The script below creates a relational table named department, which has a column of type Person, then inserts a row into the table. Notice how constructor Person() provides a value for column manager.
CREATE TABLE department ( dept_name VARCHAR2(20), manager Person, location VARCHAR2(20)) / INSERT INTO department VALUES ('Payroll', Person('Alan', 'Tsai', ...), 'Los Angeles') /
The new Person object stored in column manager cannot be referenced because it is stored in a column (not a row) and therefore has no object identifier.
To modify the attributes of objects in an object table, you use the UPDATE statement, as the following example shows:
BEGIN UPDATE persons p SET p.home_address = '341 Oakdene Ave' WHERE p.last_name = 'Brody'; UPDATE persons p SET p = Person('Beth', 'Steinberg', ...) WHERE p.last_name = 'Steinway'; END;
You use the DELETE statement to remove objects (rows) from an object table. To remove objects selectively, you use the WHERE clause, as follows:
BEGIN DELETE FROM persons p WHERE p.home_address = '108 Palm Dr'; END;
|
 Copyright © 1996, 2002 Oracle Corporation. All Rights Reserved. |
|
