Records

Records are items of type RECORD. Records have uniquely named fields that can store data values of different types. Thus, a record lets you treat related but dissimilar data as a logical unit. For more information, see "What Is a Record?".

Syntax

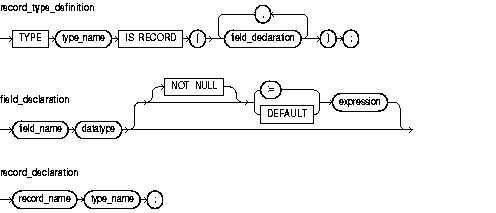

Text description of the illustration record_type_definition.gif

Keyword and Parameter Description

datatype

This is a datatype specifier. For the syntax of datatype, see "Constants and Variables".

expression

This is an arbitrarily complex combination of variables, constants, literals, operators, and function calls. The simplest expression consists of a single variable. For the syntax of expression, see "Expressions". When the declaration is elaborated, the value of expression is assigned to the field. The value and the field must have compatible datatypes.

field_name

This identifies a field in a user-defined record.

NOT NULL

This constraint prevents the assigning of nulls to a field. At run time, trying to assign a null to a field defined as NOT NULL raises the predefined exception VALUE_ERROR. The constraint NOT NULL must be followed by an initialization clause.

record_name

This identifies a user-defined record.

type_name

This identifies a user-defined record type that was defined using the datatype specifier RECORD.

:= | DEFAULT

This operator or keyword lets you initialize fields to default values.

Usage Notes

You can define RECORD types and declare user-defined records in the declarative part of any block, subprogram, or package. Also, a record can be initialized in its declaration, as the following example shows:

DECLARE
   TYPE TimeTyp IS RECORD(
      seconds SMALLINT := 0,
      minutes SMALLINT := 0,
      hours   SMALLINT := 0);

The next example shows that you can use the %TYPE attribute to specify the datatype of a field. It also shows that you can add the NOT NULL constraint to any field declaration and thereby prevent the assigning of nulls to that field. Fields declared as NOT NULL must be initialized.

DECLARE
   TYPE DeptRecTyp IS RECORD(
      deptno NUMBER(2) NOT NULL := 99,
      dname  dept.dname%TYPE,
      loc    dept.loc%TYPE);
   dept_rec DeptRecTyp;

To reference individual fields in a record, you use dot notation. For example, you might assign a value to the field dname in the record dept_rec as follows:

dept_rec.dname := 'PURCHASING';

Instead of assigning values separately to each field in a record, you can assign values to all fields at once. This can be done in two ways. First, you can assign one user-defined record to another if they have the same datatype. (Having fields that match exactly is not enough.) You can assign a %ROWTYPE record to a user-defined record if their fields match in number and order, and corresponding fields have compatible datatypes.

Second, you can use the SELECT or FETCH statement to fetch column values into a record. The columns in the select-list must appear in the same order as the fields in your record.

You can declare and reference nested records. That is, a record can be the component of another record, as the following example shows:

DECLARE
   TYPE TimeTyp IS RECORD(
      minutes SMALLINT,
      hours   SMALLINT);
   TYPE MeetingTyp IS RECORD(
      day     DATE,
      time_of TimeTyp,   -- nested record
      place   VARCHAR2(20),
      purpose VARCHAR2(50));
   TYPE PartyTyp IS RECORD(
      day     DATE,
      time_of TimeTyp,   -- nested record
      place   VARCHAR2(15));
   meeting MeetingTyp;
   seminar MeetingTyp;
   party   PartyTyp;

The next example shows that you can assign one nested record to another if they have the same datatype:

seminar.time_of := meeting.time_of;

Such assignments are allowed even if the containing records have different datatypes.

User-defined records follow the usual scoping and instantiation rules. In a package, they are instantiated when you first reference the package and cease to exist when you end the database session. In a block or subprogram, they are instantiated when you enter the block or subprogram and cease to exist when you exit the block or subprogram.

Like scalar variables, user-defined records can be declared as the formal parameters of procedures and functions. The restrictions that apply to scalar parameters also apply to user-defined records.

You can specify a RECORD type in the RETURN clause of a function spec. That allows the function to return a user-defined record of the same type. When calling a function that returns a user-defined record, use the following syntax to reference fields in the record:

function_name(parameter_list).field_name

To reference nested fields, use this syntax:

function_name(parameter_list).field_name.nested_field_name

If the function takes no parameters, code an empty parameter list. The syntax follows:

function_name().field_name

Example

In the following example, you define a RECORD type named DeptRecTyp, declare a record named dept_rec, then select a row of values into the record:

DECLARE
   TYPE DeptRecTyp IS RECORD(
      deptno NUMBER(2),
      dname  VARCHAR2(14),
      loc    VARCHAR2(13));
   dept_rec DeptRecTyp;
   ...
BEGIN
   SELECT deptno, dname, loc INTO dept_rec FROM dept
      WHERE deptno = 20;

Related Topics

Collections, Functions, Packages, Procedures
