2 Data Pump Export

Data Pump Export Interfaces

You can interact with Data Pump Export by using a command line, a parameter file, or an interactive-command mode.

• Command-Line Interface: Enables you to specify most of the Export parameters directly on the command line. For a complete description of the parameters available in the command-line interface, see Parameters Available in Export's Command-Line Mode.

• Parameter File Interface: Enables you to specify command-line parameters in a parameter file. The only exception is the PARFILE parameter, because parameter files cannot be nested. The use of parameter files is recommended if you are using parameters whose values require quotation marks. See Use of Quotation Marks On the Data Pump Command Line.

• Interactive-Command Interface: Stops logging to the terminal and displays the Export prompt, from which you can enter various commands, some of which are specific to interactive-command mode. This mode is enabled by pressing Ctrl+C during an export operation started with the command-line interface or the parameter file interface. Interactive-command mode is also enabled when you attach to an executing or stopped job.

  For a complete description of the commands available in interactive-command mode, see Commands Available in Export's Interactive-Command Mode.

Data Pump Export Modes

Export provides different modes for unloading different portions of the database. The mode is specified on the command line, using the appropriate parameter. The available modes are as follows:

• Full Export Mode

• Schema Mode

• Table Mode

• Tablespace Mode

• Transportable Tablespace Mode

Network Considerations

You can specify a connect identifier in the connect string when you invoke the Data Pump Export utility. This identifier can specify a database instance that is different from the current instance identified by the current Oracle System ID (SID). The connect identifier can be an Oracle*Net connect descriptor or a name that maps to a connect descriptor. This requires an active listener (to start the listener, enter lsnrctl start) that can be located using the connect descriptor. The following example invokes Export for user hr, using the connect descriptor named inst1:

expdp hr/password@inst1 DIRECTORY=dpump_dir1 DUMPFILE=hr.dmp TABLES=employees

The local Export client connects to the database instance identified by the connect descriptor inst1 (a simple net service name, usually defined in a tnsnames.ora file), to export the data on that instance.

Do not confuse invoking the Export utility using a connect identifier with an export operation specifying the Export NETWORK_LINK command-line parameter. When you perform an export and use the NETWORK_LINK parameter, the export is initiated over a database link. When you start an export operation and specify a connect identifier, the local Export client connects to the database instance identified by the command-line connect string, retrieves the data to be exported from the database instance identified by the database link, and writes the data to a dump file set on the connected database instance.

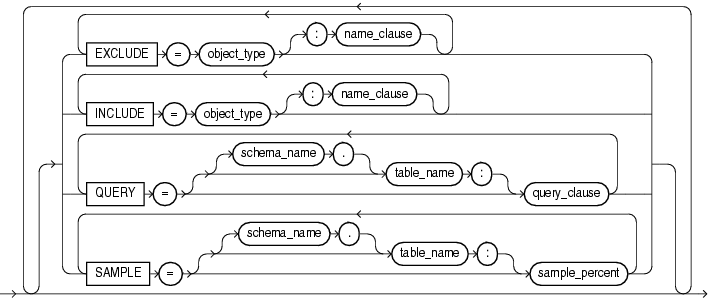

Data Filters

Data specific filtering is implemented through the QUERY and SAMPLE parameters, which specify restrictions on the table rows that are to be exported.

Data filtering can also occur indirectly as a result of metadata filtering, which can include or exclude table objects along with any associated row data.

Each data filter can be specified once per table within a job. If different filters using the same name are applied to both a particular table and to the whole job, the filter parameter supplied for the specific table will take precedence.

Metadata Filters

Metadata filtering is implemented through the EXCLUDE and INCLUDE parameters. The EXCLUDE and INCLUDE parameters are mutually exclusive.

Metadata filters identify a set of objects to be included or excluded from an Export or Import operation. For example, you could request a full export, but without Package Specifications or Package Bodies.

To use filters correctly and to get the results you expect, remember that dependent objects of an identified object are processed along with the identified object. For example, if a filter specifies that an index is to be included in an operation, then statistics from that index will also be included. Likewise, if a table is excluded by a filter, then indexes, constraints, grants, and triggers upon the table will also be excluded by the filter.

If multiple filters are specified for an object type, an implicit AND operation is applied to them. That is, objects pertaining to the job must pass all of the filters applied to their object types.

The same metadata filter name can be specified multiple times within a job.

To see which objects can be filtered, you can query the following views: DATABASE_EXPORT_OBJECTS for Full-mode exports, SCHEMA_EXPORT_OBJECTS for schema-mode exports, and TABLE_EXPORT_OBJECTS for table-mode and tablespace-mode exports. For example, you could perform the following query:

SQL> SELECT OBJECT_PATH, COMMENTS FROM SCHEMA_EXPORT_OBJECTS
  2  WHERE OBJECT_PATH LIKE '%GRANT' AND OBJECT_PATH NOT LIKE '%/%';

The output of this query looks similar to the following:

OBJECT_PATH
--------------------------------------------------------------------------------
COMMENTS
--------------------------------------------------------------------------------
GRANT
Object grants on the selected tables

OBJECT_GRANT
Object grants on the selected tables

PROCDEPOBJ_GRANT
Grants on instance procedural objects

PROCOBJ_GRANT
Schema procedural object grants in the selected schemas

ROLE_GRANT
Role grants to users associated with the selected schemas

SYSTEM_GRANT
System privileges granted to users associated with the selected schemas

ATTACH

Default: job currently in the user's schema, if there is only one

Purpose

Attaches the client session to an existing export job and automatically places you in the interactive-command interface. Export displays a description of the job to which you are attached and also displays the Export prompt.

Syntax and Description

ATTACH [=[schema_name.]job_name]

The schema_name is optional. To specify a schema other than your own, you must have the EXP_FULL_DATABASE role.

The job_name is optional if only one export job is associated with your schema and the job is active. To attach to a stopped job, you must supply the job name. To see a list of Data Pump job names, you can query the DBA_DATAPUMP_JOBS view or the USER_DATAPUMP_JOBS view.

When you are attached to the job, Export displays a description of the job and then displays the Export prompt.

Restrictions

When you specify the ATTACH parameter, the only other Data Pump parameter you can specify on the command line is ENCRYPTION_PASSWORD.

If the job you are attaching to was initially started using an encryption password, then when you attach to the job you must again enter the ENCRYPTION_PASSWORD parameter on the command line to re-specify that password. The only exception to this is if the job was initially started with the ENCRYPTION=ENCRYPTED_COLUMNS_ONLY parameter. In that case, the encryption password is not needed when attaching to the job.

You cannot attach to a job in another schema unless it is already running.

If the dump file set or master table for the job have been deleted, the attach operation will fail.

Altering the master table in any way will lead to unpredictable results.

Example

The following is an example of using the ATTACH parameter. It assumes that the job, hr.export_job, already exists.

> expdp hr/password ATTACH=hr.export_job

COMPRESSION

Default: METADATA_ONLY

Purpose

Specifies which data to compress before writing to the dump file set.

Syntax and Description

COMPRESSION={ALL | DATA_ONLY | METADATA_ONLY | NONE}

• ALL enables compression for the entire export operation.

• DATA_ONLY results in all data being written to the dump file in compressed format.

• METADATA_ONLY results in all metadata being written to the dump file in compressed format. This is the default.

• NONE disables compression for the entire export operation.

Restrictions

To make full use of all these compression options, the COMPATIBLE initialization parameter must be set to at least 11.0.0.

The METADATA_ONLY option can be used even if the COMPATIBLE initialization parameter is set to 10.2.

Example

The following is an example of using the COMPRESSION parameter:

> expdp hr/password DIRECTORY=dpump_dir1 DUMPFILE=hr_comp.dmp
COMPRESSION=METADATA_ONLY

This command will execute a schema-mode export that will compress all metadata before writing it out to the dump file, hr_comp.dmp. It defaults to a schema-mode export because no export mode is specified.

CONTENT

Default: ALL

Purpose

Enables you to filter what Export unloads: data only, metadata only, or both.

Syntax and Description

CONTENT={ALL | DATA_ONLY | METADATA_ONLY}

• ALL unloads both data and metadata. This is the default.

• DATA_ONLY unloads only table row data; no database object definitions are unloaded.

• METADATA_ONLY unloads only database object definitions; no table row data is unloaded.

Restrictions

The CONTENT=METADATA_ONLY parameter cannot be used in conjunction with the parameter TRANSPORT_TABLESPACES (transportable-tablespace-mode).

Example

The following is an example of using the CONTENT parameter:

> expdp hr/password DIRECTORY=dpump_dir1 DUMPFILE=hr.dmp CONTENT=METADATA_ONLY

This command will execute a schema-mode export that will unload only the metadata associated with the hr schema. It defaults to a schema-mode export of the hr schema because no export mode is specified.

DATA_OPTIONS

Default: There is no default. If this parameter is not used, then the special data handling options it provides simply do not take effect.

Purpose

The DATA_OPTIONS parameter provides options for how to handle certain types of data during exports and imports. For export operations, the only valid option for the DATA_OPTIONS parameter is XML_CLOBS.

Syntax and Description

DATA_OPTIONS=XML_CLOBS

The XML_CLOBS option specifies that XMLType columns are to be exported in uncompressed CLOB format regardless of the XMLType storage format that was defined for them.

If a table has XMLType columns stored only as CLOBs, then it is not necessary to specify the XML_CLOBS option because Data Pump automatically exports them in CLOB format.If a table has XMLType columns stored as any combination of object-relational (schema-based), binary, or CLOB formats, Data Pump exports them in compressed format, by default. This is the preferred method. However, if you need to export the data in uncompressed CLOB format, you can use the XML_CLOBS option to override the default.

Restrictions

Using the XML_CLOBS option requires that the same XML schema be used at both export and import time.

The Export DATA_OPTIONS parameter requires the job version to be set at 11.0.0 or higher. See VERSION.

Example

This example shows an export operation in which any XMLType columns in the hr.xdb_tab1 table are exported in uncompressed CLOB format regardless of the XMLType storage format that was defined for them.

> expdp hr/password TABLES=hr.xdb_tab1 DIRECTORY=dpump_dir1
DUMPFILE=hr_xml.dmp VERSION=11.1 DATA_OPTIONS=xml_clobs

DIRECTORY

Default: DATA_PUMP_DIR

Purpose

Specifies the default location to which Export can write the dump file set and the log file.

Syntax and Description

DIRECTORY=directory_object

The directory_object is the name of a database directory object (not the file path of an actual directory). Upon installation, privileged users have access to a default directory object named DATA_PUMP_DIR. Users with access to DATA_PUMP_DIR need not use the DIRECTORY parameter at all.

A directory object specified on the DUMPFILE or LOGFILE parameter overrides any directory object that you specify for the DIRECTORY parameter.

Example

The following is an example of using the DIRECTORY parameter:

> expdp hr/password DIRECTORY=dpump_dir1 DUMPFILE=employees.dmp CONTENT=METADATA_ONLY

The dump file, employees.dmp, will be written to the path that is associated with the directory object dpump_dir1.

DUMPFILE

Default: expdat.dmp

Purpose

Specifies the names, and optionally, the directory objects of dump files for an export job.

Syntax and Description

DUMPFILE=[directory_object:]file_name [, ...]

The directory_object is optional if one has already been established by the DIRECTORY parameter. If you supply a value here, it must be a directory object that already exists and that you have access to. A database directory object that is specified as part of the DUMPFILE parameter overrides a value specified by the DIRECTORY parameter or by the default directory object.

You can supply multiple file_name specifications as a comma-delimited list or in separate DUMPFILE parameter specifications. If no extension is given for the filename, then Export uses the default file extension of .dmp. The filenames can contain a substitution variable (%U), which implies that multiple files may be generated. The substitution variable is expanded in the resulting filenames into a 2-digit, fixed-width, incrementing integer starting at 01 and ending at 99. If a file specification contains two substitution variables, both are incremented at the same time. For example, exp%Uaa%U.dmp would resolve to exp01aa01.dmp, exp02aa02.dmp, and so forth.

If the FILESIZE parameter is specified, each dump file will have a maximum of that size in bytes and be nonextensible. If more space is required for the dump file set and a template with a substitution variable (%U) was supplied, a new dump file is automatically created of the size specified by FILESIZE, if there is room on the device.

As each file specification or file template containing a substitution variable is defined, it is instantiated into one fully qualified filename and Export attempts to create it. The file specifications are processed in the order in which they are specified. If the job needs extra files because the maximum file size is reached, or to keep parallel workers active, then additional files are created if file templates with substitution variables were specified.

Although it is possible to specify multiple files using the DUMPFILE parameter, the export job may only require a subset of those files to hold the exported data. The dump file set displayed at the end of the export job shows exactly which files were used. It is this list of files that is required in order to perform an import operation using this dump file set.

Restrictions

Any resulting dump file names that match preexisting dump file names will generate an error and the preexisting dump files will not be overwritten. You can override this behavior by specifying the Export parameter REUSE_DUMPFILES=Y.

Example

The following is an example of using the DUMPFILE parameter:

> expdp hr/password SCHEMAS=hr DIRECTORY=dpump_dir1 DUMPFILE=dpump_dir2:exp1.dmp,
 exp2%U.dmp PARALLEL=3

The dump file, exp1.dmp, will be written to the path associated with the directory object dpump_dir2 because dpump_dir2 was specified as part of the dump file name, and therefore overrides the directory object specified with the DIRECTORY parameter. Because all three parallel processes will be given work to perform during this job, the exp201.dmp and exp202.dmp dump files will be created and they will be written to the path associated with the directory object, dpump_dir1, that was specified with the DIRECTORY parameter.

ENCRYPTION

Default: The default value depends upon the combination of encryption-related parameters that are used. To enable encryption, either the ENCRYPTION or ENCRYPTION_PASSWORD parameter, or both, must be specified. If only the ENCRYPTION_PASSWORD parameter is specified, then the ENCRYPTION parameter defaults to ALL. If neither ENCRYPTION nor ENCRYPTION_PASSWORD is specified, then ENCRYPTION defaults to NONE.

Purpose

Specifies whether or not to encrypt data before writing it to the dump file set.

Syntax and Description

ENCRYPTION = {ALL | DATA_ONLY | ENCRYPTED_COLUMNS_ONLY | METADATA_ONLY | NONE}

ALL enables encryption for all data and metadata in the export operation.

DATA_ONLY specifies that only data is written to the dump file set in encrypted format.

ENCRYPTED_COLUMNS_ONLY specifies that only encrypted columns are written to the dump file set in encrypted format.

METADATA_ONLY specifies that only metadata is written to the dump file set in encrypted format.

NONE specifies that no data is written to the dump file set in encrypted format.

Restrictions

To specify the ALL, DATA_ONLY, or METADATA_ONLY options, the COMPATIBLE initialization parameter must be set to at least 11.0.0.

This parameter is valid only in the Enterprise Edition of Oracle Database 11g.

Example

The following example performs an export operation in which only data is encrypted in the dump file:

> expdp hr/password DIRECTORY=dpump_dir1 DUMPFILE=hr_enc.dmp JOB_NAME=enc1
ENCRYPTION=data_only ENCRYPTION_PASSWORD=foobar

ENCRYPTION_ALGORITHM

Default: AES128

Purpose

Specifies which cryptographic algorithm should be used to perform the encryption.

Syntax and Description

ENCRYPTION_ALGORITHM = { AES128 | AES192 | AES256 }

See Oracle Database Advanced Security Administrator's Guide for information about encryption algorithms.

Restrictions

To use this encryption feature, the COMPATIBLE initialization parameter must be set to at least 11.0.0.

The ENCRYPTION_ALGORITHM parameter requires that you also specify either the ENCRYPTION or ENCRYPTION_PASSWORD parameter; otherwise an error is returned.

This parameter is valid only in the Enterprise Edition of Oracle Database 11g.

Example

> expdp hr/password DIRECTORY=dpump_dir1 DUMPFILE=hr_enc.dmp
ENCRYPTION_PASSWORD=foobar ENCRYPTION_ALGORITHM=AES128

ENCRYPTION_MODE

Default: The default mode depends on which other encryption-related parameters are used. If only the ENCRYPTION parameter is specified, then the default mode is TRANSPARENT. If the ENCRYPTION_PASSWORD parameter is specified and the Oracle Encryption Wallet is open, then the default is DUAL. If the ENCRYPTION_PASSWORD parameter is specified and the Oracle Encryption Wallet is closed, then the default is PASSWORD.

Purpose

Specifies the type of security to use when encryption and decryption are performed.

Syntax and Description

ENCRYPTION_MODE = { DUAL | PASSWORD | TRANSPARENT }

DUAL mode creates a dump file set that can later be imported either transparently or by specifying a password that was used when the dual-mode encrypted dump file set was created. When you later import the dump file set created in DUAL mode, you can use either the Oracle Encryption Wallet or the password that was specified with the ENCRYPTION_PASSWORD parameter. DUAL mode is best suited for cases in which the dump file set will be imported onsite using the Oracle Encryption Wallet, but which may also need to be imported offsite where the Oracle Encryption Wallet is not available.

PASSWORD mode requires that you provide a password when creating encrypted dump file sets. You will need to provide the same password when you import the dump file set. PASSWORD mode requires that you also specify the ENCRYPTION_PASSWORD parameter. The PASSWORD mode is best suited for cases in which the dump file set will be imported into a different or remote database, but which must remain secure in transit.

TRANSPARENT mode allows an encrypted dump file set to be created without any intervention from a database administrator (DBA), provided the required Oracle Encryption Wallet is available. Therefore, the ENCRYPTION_PASSWORD parameter is not required, and will in fact, cause an error if it is used in TRANSPARENT mode. This encryption mode is best suited for cases in which the dump file set will be imported into the same database from which it was exported.

Restrictions

To use DUAL or TRANSPARENT mode, the COMPATIBLE initialization parameter must be set to at least 11.0.0.

When you use the ENCRYPTION_MODE parameter, you must also use either the ENCRYPTION or ENCRYPTION_PASSWORD parameter. Otherwise, an error is returned.

This parameter is valid only in the Enterprise Edition of Oracle Database 11g.

Example

> expdp hr/password DIRECTORY=dpump_dir1 DUMPFILE=hr_enc.dmp
ENCRYPTION=all ENCRYPTION_PASSWORD=secretwords
ENCRYPTION_ALGORITHM=AES256 ENCRYPTION_MODE=dual

ENCRYPTION_PASSWORD

Default: There is no default; the value is user-provided.

Purpose

Specifies a password for encrypting encrypted column data, metadata, or table data in the export dumpfile. This prevents unauthorized access to an encrypted dump file set.

Syntax and Description

ENCRYPTION_PASSWORD = password

The password value that is supplied specifies a key for re-encrypting encrypted table columns, metadata, or table data so that they are not written as clear text in the dump file set. If the export operation involves encrypted table columns, but an encryption password is not supplied, then the encrypted columns will be written to the dump file set as clear text and a warning will be issued.

For export operations, this parameter is required if the ENCRYPTION_MODE parameter is set to either PASSWORD or DUAL.

CREATE TABLE emp (col1 VARCHAR2(256) ENCRYPT IDENTIFIED BY "xyz");

Restrictions

This parameter is valid only in the Enterprise Edition of Oracle Database 11g.

If ENCRYPTION_PASSWORD is specified but ENCRYPTION_MODE is not specified, then it is not necessary to have the Transparent Data Encryption option set up since ENCRYPTION_MODE will default to PASSWORD.

The ENCRYPTION_PASSWORD parameter is not valid if the requested encryption mode is TRANSPARENT.

To use the ENCRYPTION_PASSWORD parameter if ENCRYPTION_MODE is set to DUAL, you must have the Transparent Data Encryption option set up. See Oracle Database Advanced Security Administrator's Guide for more information about the Transparent Data Encryption option.

For network exports, the ENCRYPTION_PASSWORD parameter in conjunction with ENCRYPTED_COLUMNS_ONLY is not supported with user-defined external tables that have encrypted columns. The table will be skipped and an error message will be displayed, but the job will continue.

Encryption attributes for all columns must match between the exported table definition and the target table. For example, suppose you have a table, EMP, and one of its columns is named EMPNO. Both of the following situations would result in an error because the encryption attribute for the EMP column in the source table would not match the encryption attribute for the EMP column in the target table:

• The EMP table is exported with the EMPNO column being encrypted, but prior to importing the table you remove the encryption attribute from the EMPNO column.

• The EMP table is exported without the EMPNO column being encrypted, but prior to importing the table you enable encryption on the EMPNO column.

Example

In the following example, an encryption password, 123456, is assigned to the dump file, dpcd2be1.dmp.

expdp hr/password TABLES=employee_s_encrypt DIRECTORY=dpump_dir
DUMPFILE=dpcd2be1.dmp ENCRYPTION=ENCRYPTED_COLUMNS_ONLY
ENCRYPTION_PASSWORD=123456

Encrypted columns in the employee_s_encrypt table, will not be written as clear text in the dpcd2be1.dmp dump file. Note that in order to subsequently import the dpcd2be1.dmp file created by this example, you will need to supply the same encryption password. (See "ENCRYPTION_PASSWORD" for an example of an import operation using the ENCRYPTION_PASSWORD parameter.)

ESTIMATE

Default: BLOCKS

Purpose

Specifies the method that Export will use to estimate how much disk space each table in the export job will consume (in bytes). The estimate is printed in the log file and displayed on the client's standard output device. The estimate is for table row data only; it does not include metadata.

Syntax and Description

ESTIMATE={BLOCKS | STATISTICS}

• BLOCKS - The estimate is calculated by multiplying the number of database blocks used by the source objects, times the appropriate block sizes.

• STATISTICS - The estimate is calculated using statistics for each table. For this method to be as accurate as possible, all tables should have been analyzed recently.

Restrictions

If the Data Pump export job involves compressed tables, the default size estimation given for the compressed table is inaccurate when ESTIMATE=BLOCKS is used. This is because the size estimate does not reflect that the data was stored in a compressed form. To get a more accurate size estimate for compressed tables, use ESTIMATE=STATISTICS.

The estimate may also be inaccurate if the QUERY, SAMPLE, or REMAP_DATA parameter is used.

Example

The following example shows a use of the ESTIMATE parameter in which the estimate is calculated using statistics for the employees table:

> expdp hr/password TABLES=employees ESTIMATE=STATISTICS DIRECTORY=dpump_dir1
 DUMPFILE=estimate_stat.dmp

ESTIMATE_ONLY

Default: n

Purpose

Instructs Export to estimate the space that a job would consume, without actually performing the export operation.

Syntax and Description

ESTIMATE_ONLY={y | n}

If ESTIMATE_ONLY=y, then Export estimates the space that would be consumed, but quits without actually performing the export operation.

Example

The following shows an example of using the ESTIMATE_ONLY parameter to determine how much space an export of the HR schema will take.

> expdp hr/password ESTIMATE_ONLY=y NOLOGFILE=y

EXCLUDE

Default: There is no default

Purpose

Enables you to filter the metadata that is exported by specifying objects and object types that you want excluded from the export operation.

Syntax and Description

EXCLUDE=object_type[:name_clause] [, ...]

All object types for the given mode of export will be included except those specified in an EXCLUDE statement. If an object is excluded, all of its dependent objects are also excluded. For example, excluding a table will also exclude all indexes and triggers on the table.

The name_clause is optional. It allows selection of specific objects within an object type. It is a SQL expression used as a filter on the type's object names. It consists of a SQL operator and the values against which the object names of the specified type are to be compared. The name clause applies only to object types whose instances have names (for example, it is applicable to TABLE, but not to GRANT). The name clause must be separated from the object type with a colon and enclosed in double quotation marks, because single-quotation marks are required to delimit the name strings. For example, you could set EXCLUDE=INDEX:"LIKE 'EMP%'" to exclude all indexes whose names start with EMP.

If no name_clause is provided, all objects of the specified type are excluded.

More than one EXCLUDE statement can be specified.

Oracle recommends that you place EXCLUDE clauses in a parameter file to avoid having to use escape characters on the command line.

If the object_type you specify is CONSTRAINT, GRANT, or USER, you should be aware of the effects this will have, as described in the following paragraphs.

Excluding Constraints

The following constraints cannot be explicitly excluded:

• NOT NULL constraints

• Constraints needed for the table to be created and loaded successfully; for example, primary key constraints for index-organized tables, or REF SCOPE and WITH ROWID constraints for tables with REF columns

This means that the following EXCLUDE statements will be interpreted as follows:

• EXCLUDE=CONSTRAINT will exclude all (nonreferential) constraints, except for NOT NULL constraints and any constraints needed for successful table creation and loading.

• EXCLUDE=REF_CONSTRAINT will exclude referential integrity (foreign key) constraints.

Excluding Grants and Users

Specifying EXCLUDE=GRANT excludes object grants on all object types and system privilege grants.

Specifying EXCLUDE=USER excludes only the definitions of users, not the objects contained within users' schemas.

To exclude a specific user and all objects of that user, specify a filter such as the following (where hr is the schema name of the user you want to exclude):

EXCLUDE=SCHEMA:"='HR'"

If you try to exclude a user by using a statement such as EXCLUDE=USER:"='HR'", then only the information used in CREATE USER hr DDL statements will be excluded, and you may not get the results you expect.

Restrictions

The EXCLUDE and INCLUDE parameters are mutually exclusive.

Example

The following is an example of using the EXCLUDE statement.

> expdp hr/password DIRECTORY=dpump_dir1 DUMPFILE=hr_exclude.dmp EXCLUDE=VIEW,
PACKAGE, FUNCTION

This will result in a schema-mode export in which all of the hr schema will be exported except its views, packages, and functions.

FILESIZE

Default: 0 (unlimited)

Purpose

Specifies the maximum size of each dump file. If the size is reached for any member of the dump file set, that file is closed and an attempt is made to create a new file, if the file specification contains a substitution variable.

Syntax and Description

FILESIZE=integer[B | K | M | G]

The integer can be followed by B, K, M, or G (indicating bytes, kilobytes, megabytes, and gigabytes respectively). Bytes is the default. The actual size of the resulting file may be rounded down slightly to match the size of the internal blocks used in dump files.

Restrictions

The minimum size for a file is ten times the default Data Pump block size, which is 4 kilobytes.

Example

The following shows an example in which the size of the dump file is set to 3 megabytes:

> expdp hr/password DIRECTORY=dpump_dir1 DUMPFILE=hr_3m.dmp FILESIZE=3M

If three megabytes had not been sufficient to hold all the exported data, then the following error would have been displayed and the job would have stopped:

ORA-39095: Dump file space has been exhausted: Unable to allocate 217088 bytes

The actual number of bytes that could not be allocated may vary. Also, this number does not represent the amount of space needed to complete the entire export operation. It indicates only the size of the current object that was being exported when the job ran out of dump file space.This situation can be corrected by first attaching to the stopped job, adding one or more files using the ADD_FILE command, and then restarting the operation.

FLASHBACK_SCN

Default: There is no default

Purpose

Specifies the system change number (SCN) that Export will use to enable the Flashback Query utility.

Syntax and Description

FLASHBACK_SCN=scn_value

The export operation is performed with data that is consistent as of the specified SCN. If the NETWORK_LINK parameter is specified, the SCN refers to the SCN of the source database.

Restrictions

FLASHBACK_SCN and FLASHBACK_TIME are mutually exclusive.

The FLASHBACK_SCN parameter pertains only to the Flashback Query capability of Oracle Database. It is not applicable to Flashback Database, Flashback Drop, or Flashback Data Archive.

Example

The following example assumes that an existing SCN value of 384632 exists. It exports the hr schema up to SCN 384632.

> expdp hr/password DIRECTORY=dpump_dir1 DUMPFILE=hr_scn.dmp FLASHBACK_SCN=384632

FLASHBACK_TIME

Default: There is no default

Purpose

The SCN that most closely matches the specified time is found, and this SCN is used to enable the Flashback utility. The export operation is performed with data that is consistent as of this SCN.

Syntax and Description

FLASHBACK_TIME="TO_TIMESTAMP(time-value)"

Because the TO_TIMESTAMP value is enclosed in quotation marks, it would be best to put this parameter in a parameter file. Otherwise, you might need to use escape characters on the command line in front of the quotation marks. See Use of Quotation Marks On the Data Pump Command Line.

Restrictions

FLASHBACK_TIME and FLASHBACK_SCN are mutually exclusive.

The FLASHBACK_TIME parameter pertains only to the flashback query capability of Oracle Database. It is not applicable to Flashback Database, Flashback Drop, or Flashback Data Archive.

Example

You can specify the time in any format that the DBMS_FLASHBACK.ENABLE_AT_TIME procedure accepts. For example, suppose you have a parameter file, flashback.par, with the following contents:

DIRECTORY=dpump_dir1
DUMPFILE=hr_time.dmp
FLASHBACK_TIME="TO_TIMESTAMP('25-08-2003 14:35:00', 'DD-MM-YYYY HH24:MI:SS')"

You could then issue the following command:

> expdp hr/password PARFILE=flashback.par

The export operation will be performed with data that is consistent with the SCN that most closely matches the specified time.

FULL

Default: n

Purpose

Specifies that you want to perform a full database mode export.

Syntax and Description

FULL={y | n}

FULL=y indicates that all data and metadata are to be exported. Filtering can restrict what is exported using this export mode. See Filtering During Export Operations.

To perform a full export, you must have the EXP_FULL_DATABASE role.

Restrictions

• A full export does not export system schemas that contain Oracle-managed data and metadata. Examples of system schemas that are not exported include SYS, ORDSYS, and MDSYS.

• Grants on objects owned by the SYS schema are never exported.

• If you are exporting data that is protected by a realm, you must have authorization for that realm.

  See Also:

  Oracle Database Vault Administrator's Guide for information about configuring realms

Example

The following is an example of using the FULL parameter. The dump file, expfull.dmp is written to the dpump_dir2 directory.

> expdp hr/password DIRECTORY=dpump_dir2 DUMPFILE=expfull.dmp FULL=y NOLOGFILE=y

HELP

Default: N

Purpose

Displays online help for the Export utility.

Syntax and Description

HELP = {y | n}

If HELP=y is specified, Export displays a summary of all Export command-line parameters and interactive commands.

Example

> expdp HELP = y

This example will display a brief description of all Export parameters and commands.

INCLUDE

Default: There is no default

Purpose

Enables you to filter the metadata that is exported by specifying objects and object types for the current export mode. The specified objects and all their dependent objects are exported. Grants on these objects are also exported.

Syntax and Description

INCLUDE = object_type[:name_clause] [, ...]

Only object types explicitly specified in INCLUDE statements, and their dependent objects, are exported. No other object types, including the schema definition information that is normally part of a schema-mode export when you have the EXP_FULL_DATABASE role, are exported.

To see a list of valid paths for use with the INCLUDE parameter, you can query the following views: DATABASE_EXPORT_OBJECTS for Full mode, SCHEMA_EXPORT_OBJECTS for schema mode, and TABLE_EXPORT_OBJECTS for table and tablespace mode.

The name_clause is optional. It allows fine-grained selection of specific objects within an object type. It is a SQL expression used as a filter on the object names of the type. It consists of a SQL operator and the values against which the object names of the specified type are to be compared. The name clause applies only to object types whose instances have names (for example, it is applicable to TABLE, but not to GRANT). The optional name clause must be separated from the object type with a colon and enclosed in double quotation marks, because single-quotation marks are required to delimit the name strings.

Oracle recommends that INCLUDE statements be placed in a parameter file; otherwise you might have to use operating system-specific escape characters on the command line before quotation marks. See Use of Quotation Marks On the Data Pump Command Line.

For example, suppose you have a parameter file named hr.par with the following content:

SCHEMAS=HR
DUMPFILE=expinclude.dmp
DIRECTORY=dpump_dir1
LOGFILE=expinclude.log
INCLUDE=TABLE:"IN ('EMPLOYEES', 'DEPARTMENTS')"
INCLUDE=PROCEDURE
INCLUDE=INDEX:"LIKE 'EMP%'"

You could then use the hr.par file to start an export operation, without having to enter any other parameters on the command line:

> expdp hr/password parfile=hr.par

Including Constraints

If the object_type you specify is a CONSTRAINT, you should be aware of the effects this will have.

The following constraints cannot be explicitly included:

• NOT NULL constraints

• Constraints needed for the table to be created and loaded successfully; for example, primary key constraints for index-organized tables, or REF SCOPE and WITH ROWID constraints for tables with REF columns

This means that the following INCLUDE statements will be interpreted as follows:

• INCLUDE=CONSTRAINT will include all (nonreferential) constraints, except for NOT NULL constraints and any constraints needed for successful table creation and loading.

• INCLUDE=REF_CONSTRAINT will include referential integrity (foreign key) constraints.

Restrictions

• The INCLUDE and EXCLUDE parameters are mutually exclusive.

• Grants on objects owned by the SYS schema are never exported.

Example

The following example performs an export of all tables (and their dependent objects) in the hr schema:

> expdp hr/password INCLUDE=TABLE DUMPFILE=dpump_dir1:exp_inc.dmp NOLOGFILE=y

JOB_NAME

Default: system-generated name of the form SYS_EXPORT_<mode>_NN

Purpose

Used to identify the export job in subsequent actions, such as when the ATTACH parameter is used to attach to a job, or to identify the job using the DBA_DATAPUMP_JOBS or USER_DATAPUMP_JOBS views. The job name becomes the name of the master table in the current user's schema. The master table is used to control the export job.

Syntax and Description

JOB_NAME=jobname_string

The jobname_string specifies a name of up to 30 bytes for this export job. The bytes must represent printable characters and spaces. If spaces are included, the name must be enclosed in single quotation marks (for example, 'Thursday Export'). The job name is implicitly qualified by the schema of the user performing the export operation.

The default job name is system-generated in the form SYS_EXPORT_<mode>_NN, where NN expands to a 2-digit incrementing integer starting at 01. An example of a default name is 'SYS_EXPORT_TABLESPACE_02'.

Example

The following example shows an export operation that is assigned a job name of exp_job:

> expdp hr/password DIRECTORY=dpump_dir1 DUMPFILE=exp_job.dmp JOB_NAME=exp_job
NOLOGFILE=y

LOGFILE

Default: export.log

Purpose

Specifies the name, and optionally, a directory, for the log file of the export job.

Syntax and Description

LOGFILE=[directory_object:]file_name

You can specify a database directory_object previously established by the DBA, assuming that you have access to it. This overrides the directory object specified with the DIRECTORY parameter.

The file_name specifies a name for the log file. The default behavior is to create a file named export.log in the directory referenced by the directory object specified in the DIRECTORY parameter.

All messages regarding work in progress, work completed, and errors encountered are written to the log file. (For a real-time status of the job, use the STATUS command in interactive mode.)

A log file is always created for an export job unless the NOLOGFILE parameter is specified. As with the dump file set, the log file is relative to the server and not the client.

An existing file matching the filename will be overwritten.

Restrictions

To perform a Data Pump Export using Automatic Storage Management (ASM), you must specify a LOGFILE parameter that includes a directory object that does not include the ASM + notation. That is, the log file must be written to a disk file, and not written into the ASM storage. Alternatively, you can specify NOLOGFILE=Y. However, this prevents the writing of the log file.

Example

The following example shows how to specify a log file name if you do not want to use the default:

> expdp hr/password DIRECTORY=dpump_dir1 DUMPFILE=hr.dmp LOGFILE=hr_export.log

NETWORK_LINK

Default: There is no default

Purpose

Enables an export from a (source) database identified by a valid database link. The data from the source database instance is written to a dump file set on the connected database instance.

Syntax and Description

NETWORK_LINK=source_database_link

The NETWORK_LINK parameter initiates an export using a database link. This means that the system to which the expdp client is connected contacts the source database referenced by the source_database_link, retrieves data from it, and writes the data to a dump file set back on the connected system.

The source_database_link provided must be the name of a database link to an available database. If the database on that instance does not already have a database link, you or your DBA must create one. For more information about the CREATE DATABASE LINK statement, see Oracle Database SQL Language Reference.

If the source database is read-only, then the user on the source database must have a locally managed tablespace assigned as the default temporary tablespace. Otherwise, the job will fail. For further details about this, see the information about creating locally managed temporary tablespaces in the Oracle Database Administrator's Guide.

Restrictions

When the NETWORK_LINK parameter is used in conjunction with the TABLES parameter, only whole tables can be exported (not partitions of tables).

The only types of database links supported by Data Pump Export are: public, fixed-user, and connected-user. Current-user database links are not supported.

Example

The following is an example of using the NETWORK_LINK parameter. The source_database_link would be replaced with the name of a valid database link that must already exist.

> expdp hr/password DIRECTORY=dpump_dir1 NETWORK_LINK=source_database_link
  DUMPFILE=network_export.dmp LOGFILE=network_export.log

NOLOGFILE

Default: n

Purpose

Specifies whether to suppress creation of a log file.

Syntax and Description

NOLOGFILE={y | n}

Specify NOLOGFILE=y to suppress the default behavior of creating a log file. Progress and error information is still written to the standard output device of any attached clients, including the client that started the original export operation. If there are no clients attached to a running job and you specify NOLOGFILE=y, you run the risk of losing important progress and error information.

Example

The following is an example of using the NOLOGFILE parameter:

> expdp hr/password DIRECTORY=dpump_dir1 DUMPFILE=hr.dmp NOLOGFILE=y

This command results in a schema-mode export in which no log file is written.

PARALLEL

Default: 1

Purpose

Specifies the maximum number of threads of active execution operating on behalf of the export job. This execution set consists of a combination of worker processes and parallel I/O server processes. The master control process and worker processes acting as query coordinators in parallel query operations do not count toward this total.

This parameter enables you to make trade-offs between resource consumption and elapsed time.

Syntax and Description

PARALLEL=integer

The value you specify for integer should be less than, or equal to, the number of files in the dump file set (or you should specify substitution variables in the dump file specifications). Because each active worker process or I/O server process writes exclusively to one file at a time, an insufficient number of files can have adverse effects. Some of the worker processes will be idle while waiting for files, thereby degrading the overall performance of the job. More importantly, if any member of a cooperating group of parallel I/O server processes cannot obtain a file for output, then the export operation will be stopped with an ORA-39095 error. Both situations can be corrected by attaching to the job using the Data Pump Export utility, adding more files using the ADD_FILE command while in interactive mode, and in the case of a stopped job, restarting the job.

To increase or decrease the value of PARALLEL during job execution, use interactive-command mode. Decreasing parallelism does not result in fewer worker processes associated with the job; it merely decreases the number of worker processes that will be executing at any given time. Also, any ongoing work must reach an orderly completion point before the decrease takes effect. Therefore, it may take a while to see any effect from decreasing the value. Idle workers are not deleted until the job exits.

Increasing the parallelism takes effect immediately if there is work that can be performed in parallel.

Restrictions

This parameter is valid only in the Enterprise Edition of Oracle Database 11g.

Example

The following is an example of using the PARALLEL parameter:

> expdp hr/password DIRECTORY=dpump_dir1 LOGFILE=parallel_export.log
JOB_NAME=par4_job DUMPFILE=par_exp%u.dmp PARALLEL=4


This results in a schema-mode export of the hr schema in which up to four files could be created in the path pointed to by the directory object, dpump_dir1.

PARFILE

Default: There is no default

Purpose

Specifies the name of an export parameter file.

Syntax and Description

PARFILE=[directory_path]file_name

Unlike dump and log files, which are created and written by the Oracle database, the parameter file is opened and read by the client running the expdp image. Therefore, a directory object name is neither required nor appropriate. The directory path is an operating system-specific directory specification. The default is the user's current directory.

The use of parameter files is highly recommended if you are using parameters whose values require the use of quotation marks. See Use of Quotation Marks On the Data Pump Command Line.

Restrictions

The PARFILE parameter cannot be specified within a parameter file.

Example

The content of an example parameter file, hr.par, might be as follows:

SCHEMAS=HR
DUMPFILE=exp.dmp
DIRECTORY=dpump_dir1
LOGFILE=exp.log

You could then issue the following Export command to specify the parameter file:

> expdp hr/password parfile=hr.par

QUERY

Default: There is no default

Purpose

Enables you to filter the data that is exported by specifying a clause for a SQL SELECT statement, which is applied to all tables in the export job or to a specific table.

Syntax and Description

QUERY = [schema.][table_name:] query_clause

The query_clause is typically a WHERE clause for fine-grained row selection, but could be any SQL clause. For example, an ORDER BY clause could be used to speed up a migration from a heap-organized table to an index-organized table. If a [schema.]table_name is not supplied, the query is applied to (and must be valid for) all tables in the export job. A table-specific query overrides a query applied to all tables.

When the query is to be applied to a specific table, a colon must separate the table name from the query clause. More than one table-specific query can be specified, but only one can be specified per table. Oracle highly recommends that you place QUERY specifications in a parameter file; otherwise, you might have to use operating system-specific escape characters on the command line before each quotation mark. See Use of Quotation Marks On the Data Pump Command Line.

The query must be enclosed in single or double quotation marks.

To specify a schema other than your own in a table-specific query, you need the EXP_FULL_DATABASE role.

Restrictions

The QUERY parameter cannot be used in conjunction with the following parameters:

• CONTENT=METADATA_ONLY

• ESTIMATE_ONLY

• TRANSPORT_TABLESPACES

Example

The following is an example of using the QUERY parameter:

> expdp hr/password parfile=emp_query.par

The contents of the emp_query.par file are as follows:

QUERY=employees:"WHERE department_id > 10 AND salary > 10000"
NOLOGFILE=y
DIRECTORY=dpump_dir1
DUMPFILE=exp1.dmp

This example unloads all tables in the hr schema, but only the rows that fit the query expression. In this case, all rows in all tables (except employees) in the hr schema will be unloaded. For the employees table, only rows that meet the query criteria are unloaded.

REMAP_DATA

Default: There is no default

Purpose

The REMAP_DATA parameter allows you to specify a remap function that takes as a source the original value of the designated column and returns a remapped value that will replace the original value in the dump file. A common use for this option is to mask data when moving from a production system to a test system. For example, a column of sensitive customer data such as credit card numbers could be replaced with numbers generated by a REMAP_DATA function. This would allow the data to retain its essential formatting and processing characteristics without exposing private data to unauthorized personnel.

The same function can be applied to multiple columns being dumped. This is useful when you want to guarantee consistency in remapping both the child and parent column in a referential constraint.

Syntax and Description

REMAP_DATA=[schema.]tablename.column_name:[schema.]pkg.function

The description of each syntax element, in the order in which they appear in the syntax, is as follows:

schema1 -- the schema containing the table to be remapped. By default, this is the schema of the user doing the export.

tablename -- the table whose column will be remapped.

column_name -- the column whose data is to be remapped.

schema2 -- the schema containing the PL/SQL package you have created that contains the remapping function. As a default, this is the schema of the user doing the export.

pkg -- the name of the PL/SQL package you have created that contains the remapping function.

function -- the name of the function within the PL/SQL that will be called to remap the column table in each row of the specified table.

Restrictions

The data types of the source argument and the returned value should both match the data type of the designated column in the table.

Remapping functions should not perform commits or rollbacks.

Example

The following example assumes a package named remap has been created that contains functions named minus10 and plusx which change the values for employee_id and first_name in the employees table.

> expdp hr/password DIRECTORY=dpump_dir1 DUMPFILE=remap1.dmp TABLES=employees
REMAP_DATA=hr.employees.employee_id:hr.remap.minus10
REMAP_DATA=hr.employees.first_name:hr.remap.plusx

REUSE_DUMPFILES

Default: N

Purpose

Specifies whether or not to overwrite a preexisting dump file.

Syntax and Description

REUSE_DUMPFILES={Y | N}

Normally, Data Pump Export will return an error if you specify a dump file name that already exists. The REUSE_DUMPFILES parameter allows you to override that behavior and reuse a dump file name. For example, if you performed an export and specified DUMPFILE=hr.dmp and REUSE_DUMPFILES=Y, then hr.dmp would be overwritten if it already existed. Its previous contents would be lost and it would contain data for the current export instead.

Example

The following export operation creates a dump file named enc1.dmp, even if a dump file with that name already exists.

> expdp hr/password DIRECTORY=dpump_dir1 DUMPFILE=enc1.dmp
TABLES=employees REUSE_DUMPFILES=y

SAMPLE

Default: There is no default

Purpose

Allows you to specify a percentage of the data blocks to be sampled and unloaded from the source database.

Syntax and Description

SAMPLE=[[schema_name.]table_name:]sample_percent

This parameter allows you to export subsets of data by specifying the percentage of data to be sampled and exported. The sample_percent indicates the probability that a block of rows will be selected as part of the sample. It does not mean that the database will retrieve exactly that amount of rows from the table. The value you supply for sample_percent can be anywhere from .000001 up to, but not including, 100.

The sample_percent can be applied to specific tables. In the following example, 50% of the HR.EMPLOYEES table will be exported:

SAMPLE="HR"."EMPLOYEES":50

If you specify a schema, you must also specify a table. However, you can specify a table without specifying a schema; the current user will be assumed. If no table is specified, then the sample_percent value applies to the entire export job.

Note that you can use this parameter in conjunction with the Data Pump Import PCTSPACE transform, so that the size of storage allocations matches the sampled data subset. (See TRANSFORM.)

Restrictions

The SAMPLE parameter is not valid for network exports.

Example

In the following example, the value 70 for SAMPLE is applied to the entire export job because no table name is specified.

> expdp hr/password DIRECTORY=dpump_dir1 DUMPFILE=sample.dmp SAMPLE=70

SCHEMAS

Default: current user's schema

Purpose

Specifies that you want to perform a schema-mode export. This is the default mode for Export.

Syntax and Description

SCHEMAS=schema_name [, ...]

If you have the EXP_FULL_DATABASE role, then you can specify a single schema other than your own or a list of schema names. The EXP_FULL_DATABASE role also allows you to export additional nonschema object information for each specified schema so that the schemas can be re-created at import time. This additional information includes the user definitions themselves and all associated system and role grants, user password history, and so on. Filtering can further restrict what is exported using schema mode (see Filtering During Export Operations).

Restrictions

If you do not have the EXP_FULL_DATABASE role, then you can specify only your own schema.

The SYS schema cannot be used as a source schema for export jobs.

Example

The following is an example of using the SCHEMAS parameter. Note that user hr is allowed to specify more than one schema because the EXP_FULL_DATABASE role was previously assigned to it for the purpose of these examples.

> expdp hr/password DIRECTORY=dpump_dir1 DUMPFILE=expdat.dmp SCHEMAS=hr,sh,oe


This results in a schema-mode export in which the schemas, hr, sh, and oe will be written to the expdat.dmp dump file located in the dpump_dir1 directory.

STATUS

Default: 0

Purpose

Specifies the frequency at which the job status display is updated.

Syntax and Description

STATUS=[integer]

If you supply a value for integer, it specifies how frequently, in seconds, job status should be displayed in logging mode. If no value is entered or if the default value of 0 is used, no additional information is displayed beyond information about the completion of each object type, table, or partition.

This status information is written only to your standard output device, not to the log file (if one is in effect).

Example

The following is an example of using the STATUS parameter.

> expdp hr/password DIRECTORY=dpump_dir1 SCHEMAS=hr,sh STATUS=300

This example will export the hr and sh schemas and display the status of the export every 5 minutes (60 seconds x 5 = 300 seconds).

TABLES

Default: There is no default

Purpose

Specifies that you want to perform a table-mode export.

Syntax and Description

TABLES=[schema_name.]table_name[:partition_name] [, ...]

Filtering can restrict what is exported using this mode (see Filtering During Export Operations). You can filter the data and metadata that is exported, by specifying a comma-delimited list of tables and partitions or subpartitions. If a partition name is specified, it must be the name of a partition or subpartition in the associated table. Only the specified set of tables, partitions, and their dependent objects are unloaded.

The table name that you specify can be preceded by a qualifying schema name. All table names specified must reside in the same schema. The schema defaults to that of the current user. To specify a schema other than your own, you must have the EXP_FULL_DATABASE role.

The use of wildcards is supported for one table name per export operation. For example, TABLES=emp% would export all tables having names that start with 'EMP'.

Using the Transportable Option During Table-Mode Export

To use the transportable option during a table-mode export, specify the TRANSPORTABLE=ALWAYS parameter in conjunction with the TABLES parameter. Metadata for the specified tables, partitions, or subpartitions is exported to the dump file. To move the actual data, you copy the data files to the target database.

When partitioned tables are exported using the transportable method, each partition and subpartition is promoted to its own table. During the subsequent import operation, the new table is automatically named by combining the table and partition name (that is, tablename_partitionname). You can override this automatic naming by using the Import REMAP_TABLE parameter.

Restrictions

Cross-schema references are not exported. For example, a trigger defined on a table within one of the specified schemas, but that resides in a schema not explicitly specified, is not exported.

Types used by the table are not exported in table mode. This means that if you subsequently import the dump file and the TYPE does not already exist in the destination database, the table creation will fail.

The use of synonyms as values for the TABLES parameter is not supported. For example, if the regions table in the hr schema had a synonym of regn, it would not be valid to use TABLES=regn. An error would be returned.

The export of individual table partitions is not supported when the NETWORK_LINK parameter is used.

The export of tables that include wildcards in the table name is not supported if the table has partitions.

The length of the table name list specified for the TABLES parameter is limited to a maximum of 4MB, unless you are using the NETWORK_LINK parameter to a 10.2.0.3 or earlier database or to a read-only database. In such cases, the limit is 4KB.

You can only specify partitions from one table if TRANSPORTABLE=ALWAYS is also set on the export.

Examples

The following example shows a simple use of the TABLES parameter to export three tables found in the hr schema: employees, jobs, and departments. Because user hr is exporting tables found in the hr schema, the schema name is not needed before the table names.

> expdp hr/password DIRECTORY=dpump_dir1 DUMPFILE=tables.dmp
TABLES=employees,jobs,departments

The following example shows the use of the TABLES parameter to export partitions:

> expdp hr/password DIRECTORY=dpump_dir1 DUMPFILE=tables_part.dmp
TABLES=sh.sales:sales_Q1_2000,sh.sales:sales_Q2_2000

This example exports the partitions, sales_Q1_2000 and sales_Q2_2000, from the table sales in the schema sh.

TABLESPACES

Default: There is no default

Purpose

Specifies a list of tablespace names to be exported in tablespace mode.

Syntax and Description

TABLESPACES=tablespace_name [, ...]

In tablespace mode, only the tables contained in a specified set of tablespaces are unloaded. If a table is unloaded, its dependent objects are also unloaded. Both object metadata and data are unloaded. If any part of a table resides in the specified set, then that table and all of its dependent objects are exported. Privileged users get all tables. Nonprivileged users get only the tables in their own schemas

Filtering can restrict what is exported using this mode (see Filtering During Export Operations).

Restrictions

The length of the tablespace name list specified for the TABLESPACES parameter is limited to a maximum of 4MB, unless you are using the NETWORK_LINK parameter to a 10.2.0.3 or earlier database or to a read-only database. In such cases, the limit is 4KB.

Example

The following is an example of using the TABLESPACES parameter. The example assumes that tablespaces tbs_4, tbs_5, and tbs_6 already exist.

> expdp hr/password DIRECTORY=dpump_dir1 DUMPFILE=tbs.dmp
TABLESPACES=tbs_4, tbs_5, tbs_6

This results in a tablespace export in which tables (and their dependent objects) from the specified tablespaces (tbs_4, tbs_5, and tbs_6) will be unloaded.

TRANSPORT_FULL_CHECK

Default: n

Purpose

Specifies whether or not to check for dependencies between those objects inside the transportable set and those outside the transportable set. This parameter is applicable only to a transportable-tablespace mode export.

Syntax and Description

TRANSPORT_FULL_CHECK={y | n}

If TRANSPORT_FULL_CHECK=y, then Export verifies that there are no dependencies between those objects inside the transportable set and those outside the transportable set. The check addresses two-way dependencies. For example, if a table is inside the transportable set but its index is not, a failure is returned and the export operation is terminated. Similarly, a failure is also returned if an index is in the transportable set but the table is not.

If TRANSPORT_FULL_CHECK=n, then Export verifies only that there are no objects within the transportable set that are dependent on objects outside the transportable set. This check addresses a one-way dependency. For example, a table is not dependent on an index, but an index is dependent on a table, because an index without a table has no meaning. Therefore, if the transportable set contains a table, but not its index, then this check succeeds. However, if the transportable set contains an index, but not the table, the export operation is terminated.

There are other checks performed as well. For instance, export always verifies that all storage segments of all tables (and their indexes) defined within the tablespace set specified by TRANSPORT_TABLESPACES are actually contained within the tablespace set.

Example

The following is an example of using the TRANSPORT_FULL_CHECK parameter. It assumes that tablespace tbs_1 exists.

> expdp hr/password DIRECTORY=dpump_dir1 DUMPFILE=tts.dmp
TRANSPORT_TABLESPACES=tbs_1 TRANSPORT_FULL_CHECK=y LOGFILE=tts.log

TRANSPORT_TABLESPACES

Default: There is no default

Purpose

Specifies that you want to perform a transportable-tablespace-mode export.

Syntax and Description

TRANSPORT_TABLESPACES=tablespace_name [, ...]

Use the TRANSPORT_TABLESPACES parameter to specify a list of tablespace names for which object metadata will be exported from the source database into the target database.

The log file for the export lists the datafiles that are used in the transportable set, the dump files, and any containment violations.

The TRANSPORT_TABLESPACES parameter exports metadata for all objects within the specified tablespace. If you want to perform a transportable export of only certain tables, partitions, or subpartitions, you must use the TABLES parameter in conjunction with the TRANSPORTABLE=ALWAYS parameter.

Restrictions

Transportable jobs are not restartable.

Transportable jobs are restricted to a degree of parallelism of 1.

Transportable tablespace mode requires that you have the EXP_FULL_DATABASE role.

Transportable mode does not support encrypted columns.

The default tablespace of the user performing the export must not be set to one of the tablespaces being transported.

The SYS and SYSAUX tablespaces are not transportable.

All tablespaces in the transportable set must be set to read-only.

Example 1

The following is an example of using the TRANSPORT_TABLESPACES parameter in a file-based job (rather than network-based). The tablespace tbs_1 is the tablespace being moved. This example assumes that tablespace tbs_1 exists and that it has been set to read-only. This examples also assumes that the default tablespace was changed prior to this export command.

> expdp hr/password DIRECTORY=dpump_dir1 DUMPFILE=tts.dmp
TRANSPORT_TABLESPACES=tbs_1 TRANSPORT_FULL_CHECK=y LOGFILE=tts.log

TRANSPORTABLE

Default: NEVER

Purpose

Specifies whether or not the transportable option should be used during a table mode export (specified with the TABLES parameter) to export metadata for specific tables, partitions, and subpartitions.

Syntax and Description

TRANSPORTABLE = {ALWAYS | NEVER}

The definitions of the allowed values are as follows:

ALWAYS - Instructs the export job to use the transportable option. If transportable is not possible, the job will fail. The transportable option exports only metadata for the specified tables, partitions, or subpartitions specified by the TABLES parameter. You must copy the actual data files to the target database. See Using Data File Copying to Move Data.

NEVER - Instructs the export job to use either the direct path or external table method to unload data rather than the transportable option. This is the default.

Restrictions

The TRANSPORTABLE parameter is only valid in table mode exports.

The schema performing a transportable export requires the EXP_FULL_DATABASE privilege.

Tablespaces associated with tables, partitions, and subpartitions must be read-only.

Transportable mode does not export any data. Data is copied when the tablespace data files are copied from the source system to the target system. The tablespaces that must be copied are listed at the end of the log file for the export operation.

To make use of the TRANSPORTABLE parameter, the COMPATIBLE initialization parameter must be set to at least 11.0.0.

The default tablespace of the user performing the export must not be set to one of the tablespaces being transported.

Example

The following example assumes that the sh schema has the EXP_FULL_DATABASE privilege and that table sales2 is partitioned and contained within tablespace tbs2. (The tbs2 tablespace must be set to read-only in the source database.)

> expdp sh/password DIRECTORY=dpump_dir1 DUMPFILE=tto1.dmp
TABLES=sh.sales2 TRANSPORTABLE=always

After the export completes successfully, you must copy the data files to the target database area. You could then perform an import operation using the PARTITION_OPTIONS and REMAP_SCHEMA parameters to make each of the partitions in sales2 its own table. For example:

> impdp system/password PARTITION_OPTIONS=departition
TRANSPORT_DATAFILES=oracle/dbs/tbs2 DIRECTORY=dpump_dir1
DUMPFILE=tto1.dmp REMAP_SCHEMA=sh:dp

VERSION

Default: COMPATIBLE

Purpose

Specifies the version of database objects to be exported. This can be used to create a dump file set that is compatible with a previous release of Oracle Database. Note that this does not mean that Data Pump Export can be used with versions of Oracle Database prior to 10.1. Data Pump Export only works with Oracle Database 10g release 1 (10.1) or later. The VERSION parameter simply allows you to identify the version of the objects being exported.

Syntax and Description

VERSION={COMPATIBLE | LATEST | version_string}

The legal values for the VERSION parameter are as follows:

• COMPATIBLE - This is the default value. The version of the metadata corresponds to the database compatibility level. Database compatibility must be set to 9.2 or higher.

• LATEST - The version of the metadata corresponds to the database version.

• version_string - A specific database version (for example, 11.1.0). In Oracle Database 11g, this value cannot be lower than 9.2.

Database objects or attributes that are incompatible with the specified version will not be exported. For example, tables containing new datatypes that are not supported in the specified version will not be exported.

Example

The following example shows an export for which the version of the metadata will correspond to the database version:

> expdp hr/password TABLES=hr.employees VERSION=LATEST DIRECTORY=dpump_dir1
DUMPFILE=emp.dmp NOLOGFILE=y

ADD_FILE

Purpose

Adds additional files or substitution variables to the export dump file set.

Syntax and Description

ADD_FILE=[directory_object:]file_name [,...]

The file_name must not contain any directory path information. However, it can include a substitution variable, %U, which indicates that multiple files may be generated using the specified filename as a template. It can also specify another directory_object.

The size of the file being added is determined by the setting of the FILESIZE parameter.

Example

The following example adds two dump files to the dump file set. A directory object is not specified for the dump file named hr2.dmp, so the default directory object for the job is assumed. A different directory object, dpump_dir2, is specified for the dump file named hr3.dmp.

Export> ADD_FILE=hr2.dmp, dpump_dir2:hr3.dmp

CONTINUE_CLIENT

Purpose

Changes the Export mode from interactive-command mode to logging mode.

Syntax and Description

CONTINUE_CLIENT

In logging mode, status is continually output to the terminal. If the job is currently stopped, then CONTINUE_CLIENT will also cause the client to attempt to start the job.

Example

Export> CONTINUE_CLIENT

EXIT_CLIENT

Purpose

Stops the export client session, exits Export, and discontinues logging to the terminal, but leaves the current job running.

Syntax and Description

EXIT_CLIENT

Because EXIT_CLIENT leaves the job running, you can attach to the job at a later time. To see the status of the job, you can monitor the log file for the job or you can query the USER_DATAPUMP_JOBS view or the V$SESSION_LONGOPS view.

Example

Export> EXIT_CLIENT

FILESIZE

Purpose

Redefines the default size to be used for any subsequent dump files.

Syntax and Description

FILESIZE=number

The file size can be followed by B, K, M, or G to indicate that the size is expressed in bytes, kilobytes, megabytes, or gigabytes, respectively. The default is B.

A file size of 0 indicates that there will not be any size restrictions on new dump files. They will be extended as needed until the limits of the containing device are reached.

Example

Export> FILESIZE=100M

HELP

Purpose

Provides information about Data Pump Export commands available in interactive-command mode.

Syntax and Description

HELP

Displays information about the commands available in interactive-command mode.

Example

Export> HELP

KILL_JOB

Purpose

Detaches all currently attached client sessions and then kills the current job. It exits Export and returns to the terminal prompt.

Syntax and Description

KILL_JOB

A job that is killed using KILL_JOB cannot be restarted. All attached clients, including the one issuing the KILL_JOB command, receive a warning that the job is being killed by the current user and are then detached. After all clients are detached, the job's process structure is immediately run down and the master table and dump files are deleted. Log files are not deleted.

Example

Export> KILL_JOB

PARALLEL

Purpose

Enables you to increase or decrease the number of active processes (worker and parallel slaves) for the current job.

Syntax and Description

PARALLEL=integer

PARALLEL is available as both a command-line parameter and as an interactive-command mode parameter. (It is only available in Enterprise Edition.) You set it to the desired number of parallel processes (worker and parallel slaves). An increase takes effect immediately if there are sufficient files and resources. A decrease does not take effect until an existing process finishes its current task. If the value is decreased, workers are idled but not deleted until the job exits.

Example

Export> PARALLEL=10

START_JOB

Purpose

Starts the current job to which you are attached.

Syntax and Description

START_JOB

The START_JOB command restarts the current job to which you are attached (the job cannot be currently executing). The job is restarted with no data loss or corruption after an unexpected failure or after you issued a STOP_JOB command, provided the dump file set and master table have not been altered in any way.

Transportable-tablespace-mode exports are not restartable.

Example

Export> START_JOB

STATUS

Purpose

Displays cumulative status of the job, along with a description of the current operation. An estimated completion percentage for the job is also returned. Also allows resetting the display interval for logging mode status.

Syntax and Description

STATUS[=integer]

You have the option of specifying how frequently, in seconds, this status should be displayed in logging mode. If no value is entered or if the default value of 0 is used, the periodic status display is turned off and status is displayed only once.

This status information is written only to your standard output device, not to the log file (even if one is in effect).

Example

The following example will display the current job status and change the logging mode display interval to five minutes (300 seconds):

Export> STATUS=300

STOP_JOB

Purpose

Stops the current job either immediately or after an orderly shutdown, and exits Export.

Syntax and Description

STOP_JOB[=IMMEDIATE]

If the master table and dump file set are not disturbed when or after the STOP_JOB command is issued, the job can be attached to and restarted at a later time with the START_JOB command.

To perform an orderly shutdown, use STOP_JOB (without any associated value). A warning requiring confirmation will be issued. An orderly shutdown stops the job after worker processes have finished their current tasks.

To perform an immediate shutdown, specify STOP_JOB=IMMEDIATE. A warning requiring confirmation will be issued. All attached clients, including the one issuing the STOP_JOB command, receive a warning that the job is being stopped by the current user and they will be detached. After all clients are detached, the process structure of the job is immediately run down. That is, the master process will not wait for the worker processes to finish their current tasks. There is no risk of corruption or data loss when you specify STOP_JOB=IMMEDIATE. However, some tasks that were incomplete at the time of shutdown may have to be redone at restart time.

Example

Export> STOP_JOB=IMMEDIATE

Performing a Table-Mode Export

Example 2-1 shows a table-mode export, specified using the TABLES parameter. Issue the following Data Pump export command to perform a table export of the tables employees and jobs from the human resources (hr) schema:

expdp hr/password TABLES=employees,jobs DUMPFILE=dpump_dir1:table.dmp NOLOGFILE=y

Because user hr is exporting tables in his own schema, it is not necessary to specify the schema name for the tables. The NOLOGFILE=y parameter indicates that an Export log file of the operation will not be generated.

Data-Only Unload of Selected Tables and Rows

Example 2-2 shows the contents of a parameter file (exp.par) that you could use to perform a data-only unload of all tables in the human resources (hr) schema except for the tables countries and regions. Rows in the employees table are unloaded that have a department_id other than 50. The rows are ordered by employee_id.

DIRECTORY=dpump_dir1
DUMPFILE=dataonly.dmp
CONTENT=DATA_ONLY
EXCLUDE=TABLE:"IN ('COUNTRIES', 'REGIONS')"
QUERY=employees:"WHERE department_id !=50 ORDER BY employee_id"

You can issue the following command to execute the exp.par parameter file:

> expdp hr/password PARFILE=exp.par

A schema-mode export (the default mode) is performed, but the CONTENT parameter effectively limits the export to an unload of just the table's data. The DBA previously created the directory object dpump_dir1 which points to the directory on the server where user hr is authorized to read and write export dump files. The dump file dataonly.dmp is created in dpump_dir1.

Estimating Disk Space Needed in a Table-Mode Export

Example 2-3 shows the use of the ESTIMATE_ONLY parameter to estimate the space that would be consumed in a table-mode export, without actually performing the export operation. Issue the following command to use the BLOCKS method to estimate the number of bytes required to export the data in the following three tables located in the human resource (hr) schema: employees, departments, and locations.

> expdp hr/password DIRECTORY=dpump_dir1 ESTIMATE_ONLY=y TABLES=employees,
departments, locations LOGFILE=estimate.log

The estimate is printed in the log file and displayed on the client's standard output device. The estimate is for table row data only; it does not include metadata.

Performing a Schema-Mode Export

Example 2-4 shows a schema-mode export of the hr schema. In a schema-mode export, only objects belonging to the corresponding schemas are unloaded. Because schema mode is the default mode, it is not necessary to specify the SCHEMAS parameter on the command line, unless you are specifying more than one schema or a schema other than your own.

> expdp hr/password DUMPFILE=dpump_dir1:expschema.dmp LOGFILE=dpump_dir1:expschema.log

Performing a Parallel Full Database Export

Example 2-5 shows a full database Export that will have up to 3 parallel processes (worker or PQ slaves).

> expdp hr/password FULL=y DUMPFILE=dpump_dir1:full1%U.dmp, dpump_dir2:full2%U.dmp
FILESIZE=2G PARALLEL=3 LOGFILE=dpump_dir1:expfull.log JOB_NAME=expfull

Using Interactive Mode to Stop and Reattach to a Job

To start this example, reexecute the parallel full export in Example 2-5. While the export is running, press Ctrl+C. This will start the interactive-command interface of Data Pump Export. In the interactive interface, logging to the terminal stops and the Export prompt is displayed.

Export> STOP_JOB=IMMEDIATE
Are you sure you wish to stop this job ([y]/n): y

> expdp hr/password ATTACH=EXPFULL

After the job status is displayed, you can issue the CONTINUE_CLIENT command to resume logging mode and restart the expfull job.

Export> CONTINUE_CLIENT

A message is displayed that the job has been reopened, and processing status is output to the client.
